3-75
Confidential
9.29 LCD

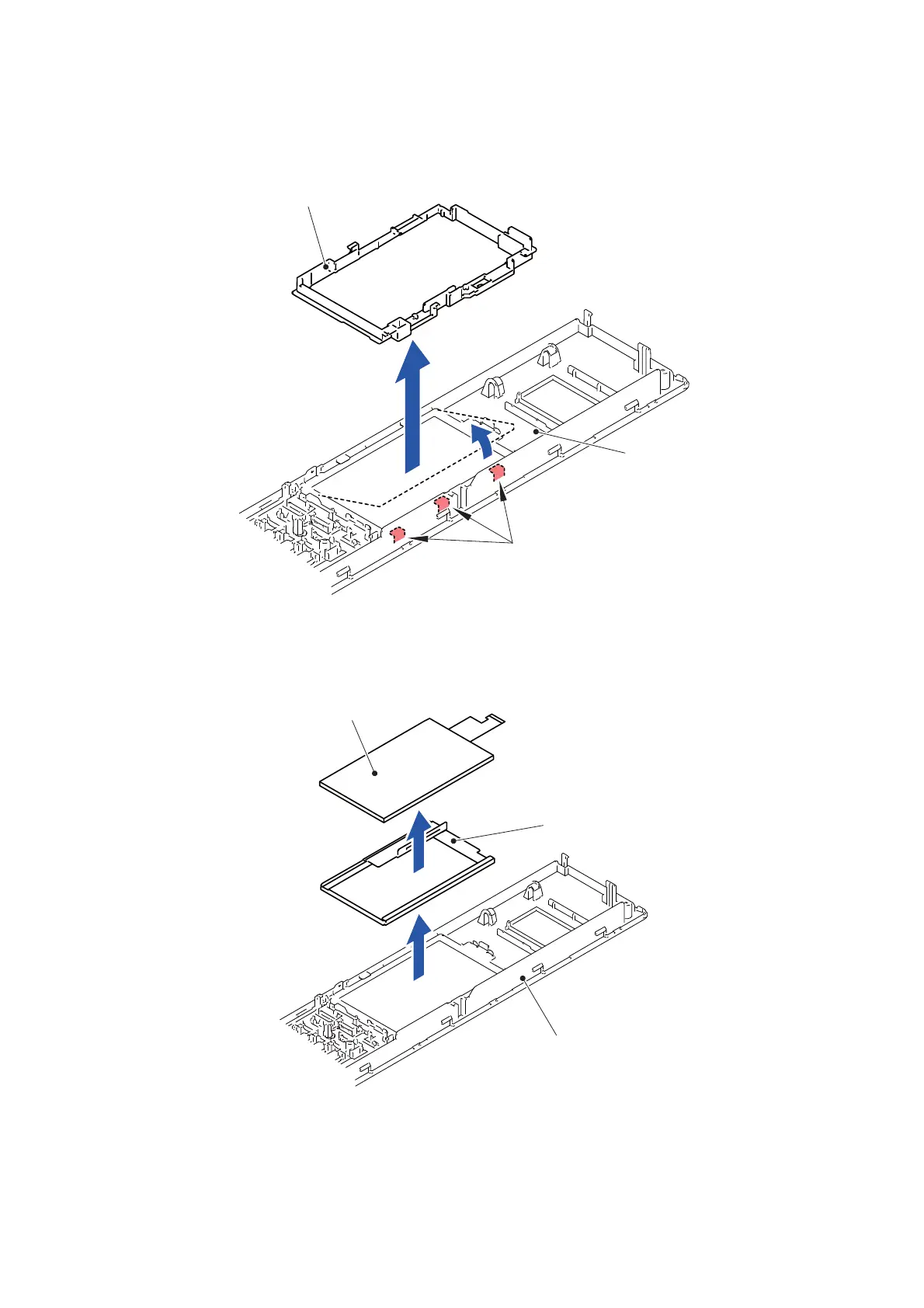

(1) Release the three Hooks and remove the LCD holder from the Panel upper cover.
Fig. 3-74
(2) Remove the LCD and LCD frame sheet from the Panel upper cover.
Fig. 3-75
Hooks
LCD holder
Panel upper cover
1a
1b
LCD
LCD frame sheet
Panel upper cover
2b
2a
