3-80
Confidential

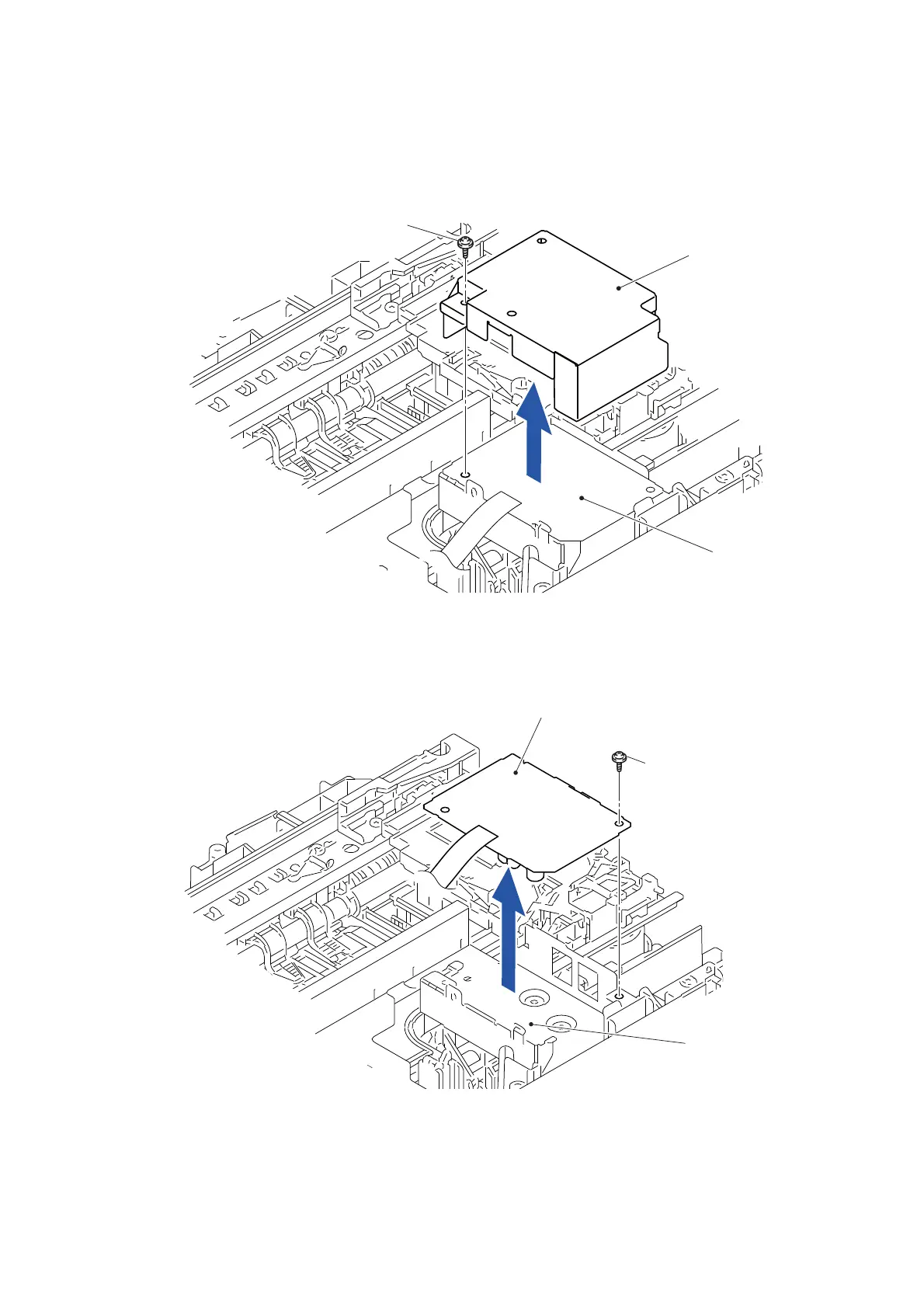

9.33 Modem PCB
(1) Remove the screw (SCREW CUP M3x6) and remove the Upper modem frame
from the Modem PCB.
Fig. 3-83
(2) Remove the screw (SCREW CUP M3x6) and remove the Modem PCB from the
Modem PCB frame.
Fig. 3-84
SCREW CUP M3x6
Upper modem frame
Modem PCB
SCREW CUP M3x6
Modem PCB
Modem PCB frame
