3-79
Confidential
9.32 Main PCB
(1) Remove the two screws (SCREW CUP M3x6) and remove the Main PCB from the
Main PCB frame.

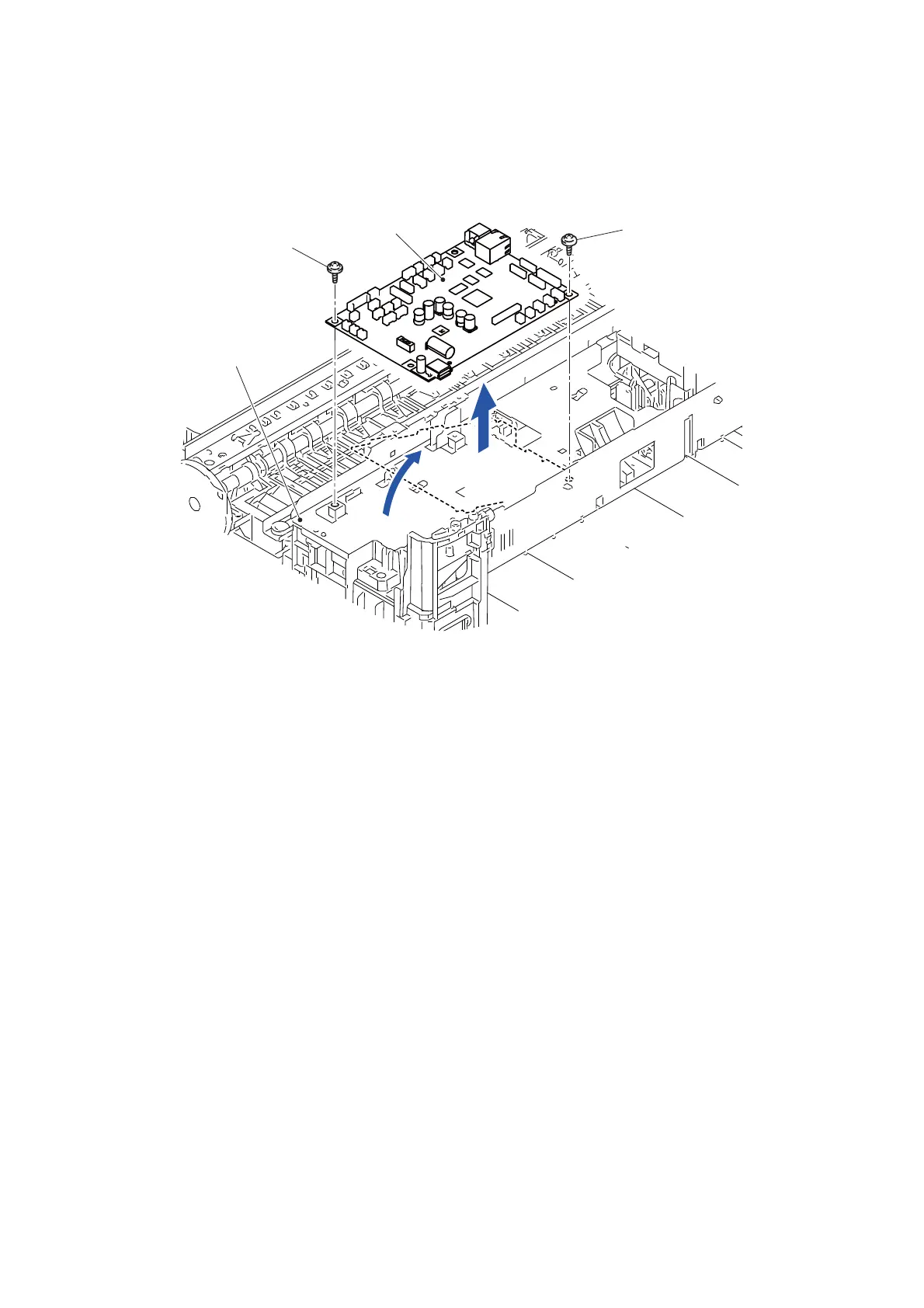

Fig. 3-82
SCREW CUP M3x6
Main PCB
Main PCB frame
SCREW CUP M3x6
