3-47
Confidential

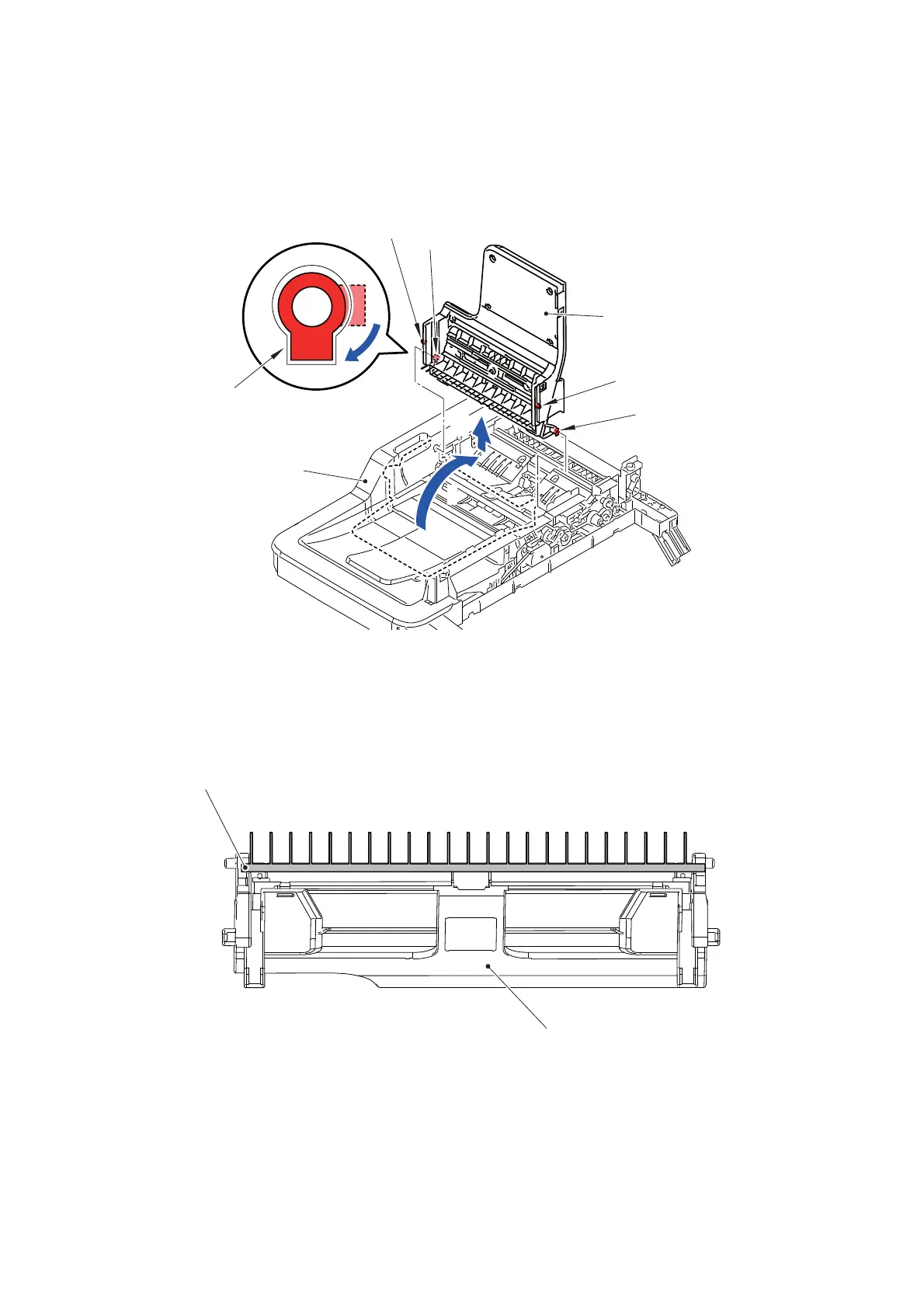

9.14 ADF Document Support
(1) Remove the two Pins and turn the ADF document support to the position shown in
the figure.
(2) Remove the two Bushings and remove the ADF document support from ADF unit.
Fig. 3-29
Assembling Note: When mounting a new ADF document support, be sure to attach
the anti-static brush as shown in the figure below.
< Where to attach the Anti-static brush >
Fig. 3-30
ADF document support
Bushing
Bushing
ADF unit
1
2
Pin
Pin
Bushing
ADF document support
Anti-static brush
