Brother MFC-J2330DW Service Manual

3-74
Confidential

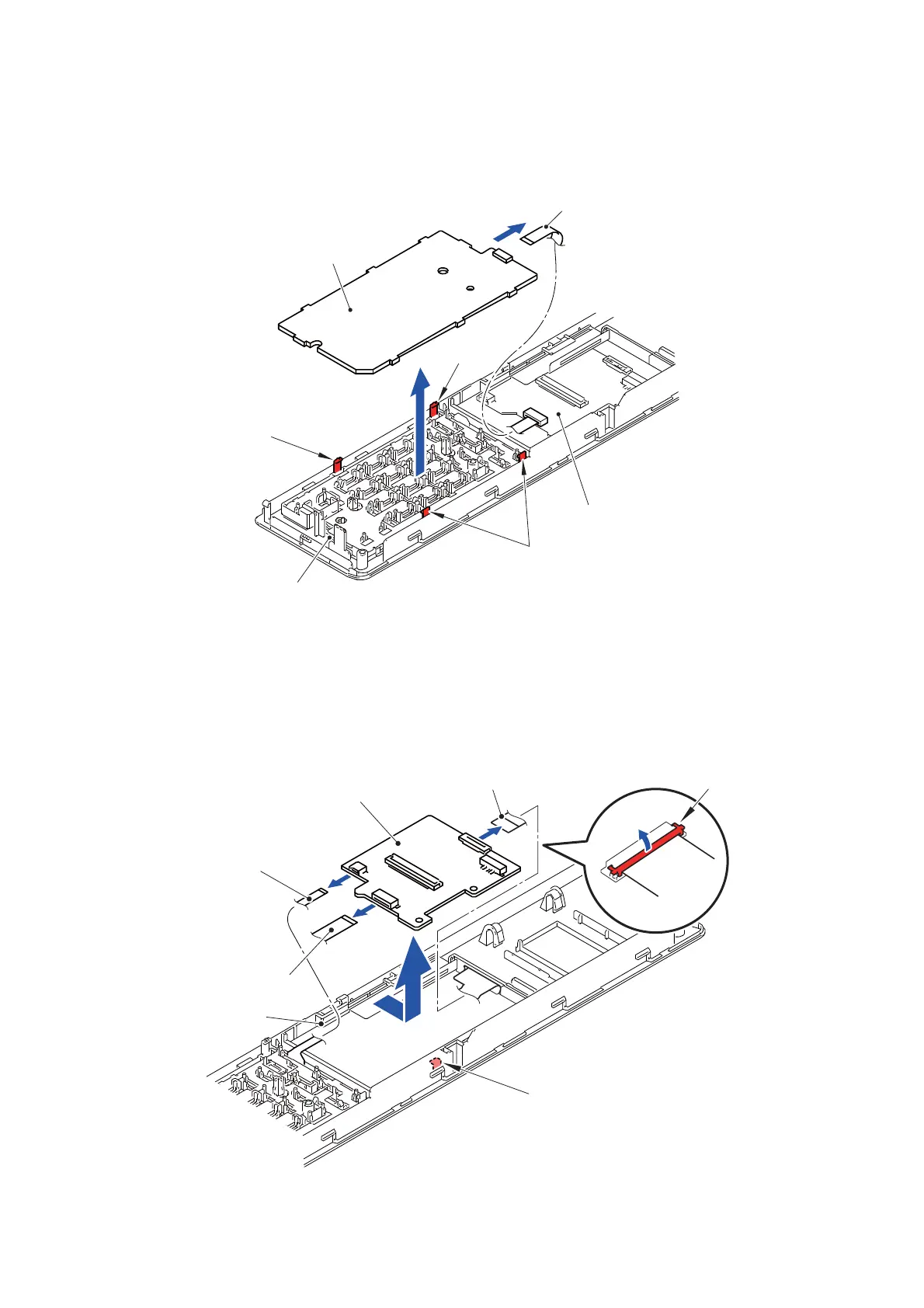

9.27 Panel PCB
(1) Disconnect the Panel PCB flat cable from the Connector of the Panel PCB.
(2) Release the four Hooks and remove the Panel PCB from the Key holder ASSY.
Fig. 3-72
9.28 LCD PCB
(1) Disconnect the three Flat cables from the LCD PCB.
(2) Release the Hook and remove the LCD PCB from the LCD holder.
Fig. 3-73
1
Hook
Hook
Hooks
LCD PCB
Key holder ASSY
Panel PCB
2
Panel PCB flat cable
1
1
1
2
Hook
LCD PCB
Panel PCB flat cable
Touch panel plate FFC
LCD flat cable
Lock
LCD holder

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
