3-96
Confidential
9.42 Switchback Sensor PCB

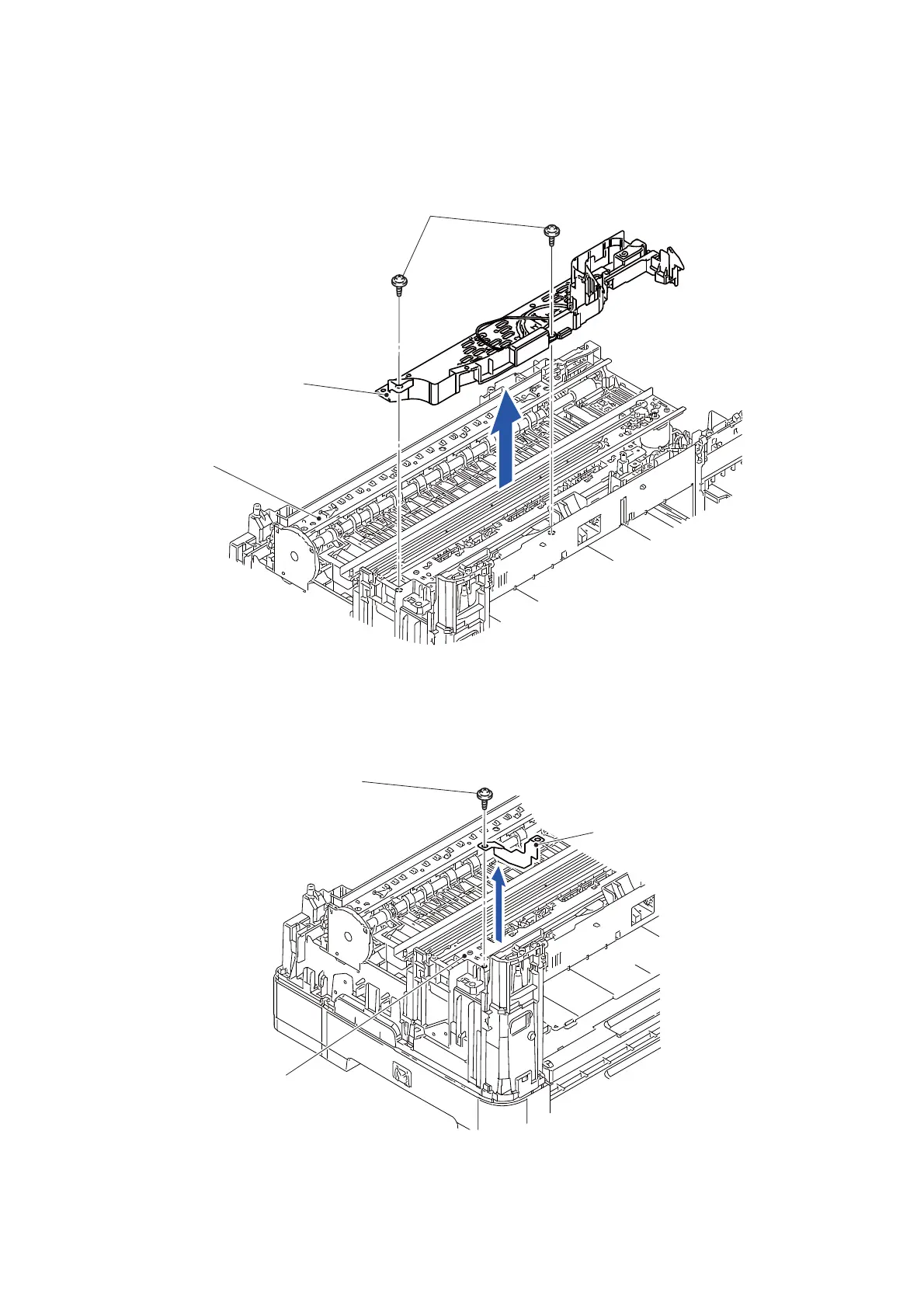

(1) Remove the two screws (TAPTITE CUP B M3x10) and remove the Tube support
plate from the Main body.
Fig. 3-109
(2) Release the wiring of the Switchback sensor harness.
(3) Remove the screw (TAPTITE CUP B M3x10) and remove the Main PCB earth
frame L from the Switchback frame ASSY.
Fig. 3-110
Tube support plate
Main body
TAPTITE CUP B M3x10
Main PCB earth frame L
TAPTITE CUP B M3x10
Hooks
Switchback frame ASSY
