3-82
Confidential

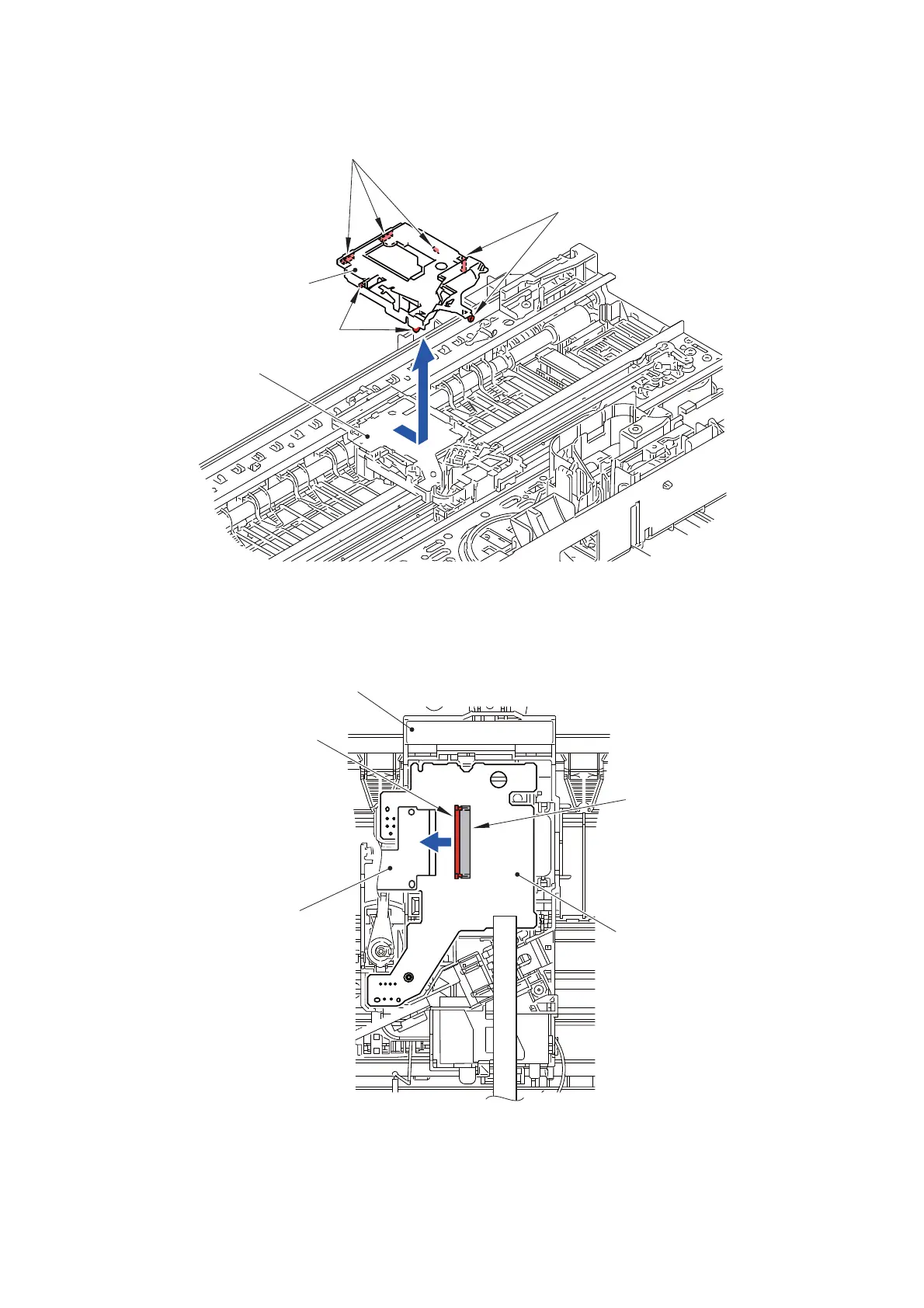

(4) Release the seven Hooks and remove the Head cover from the Head/carriage unit.
Fig. 3-87
(5) Release the Lock of the Connector and disconnect the Flat cable from the Carriage
PCB ASSY.
Fig. 3-88
Hooks
Hooks
Hooks
Head/carriage unit
Head cover
Head/carriage unit
Carriage PCB ASSY
Connector
Lock
Flat cable
