Brother MFC-J2330DW Service Manual

3-72
Confidential

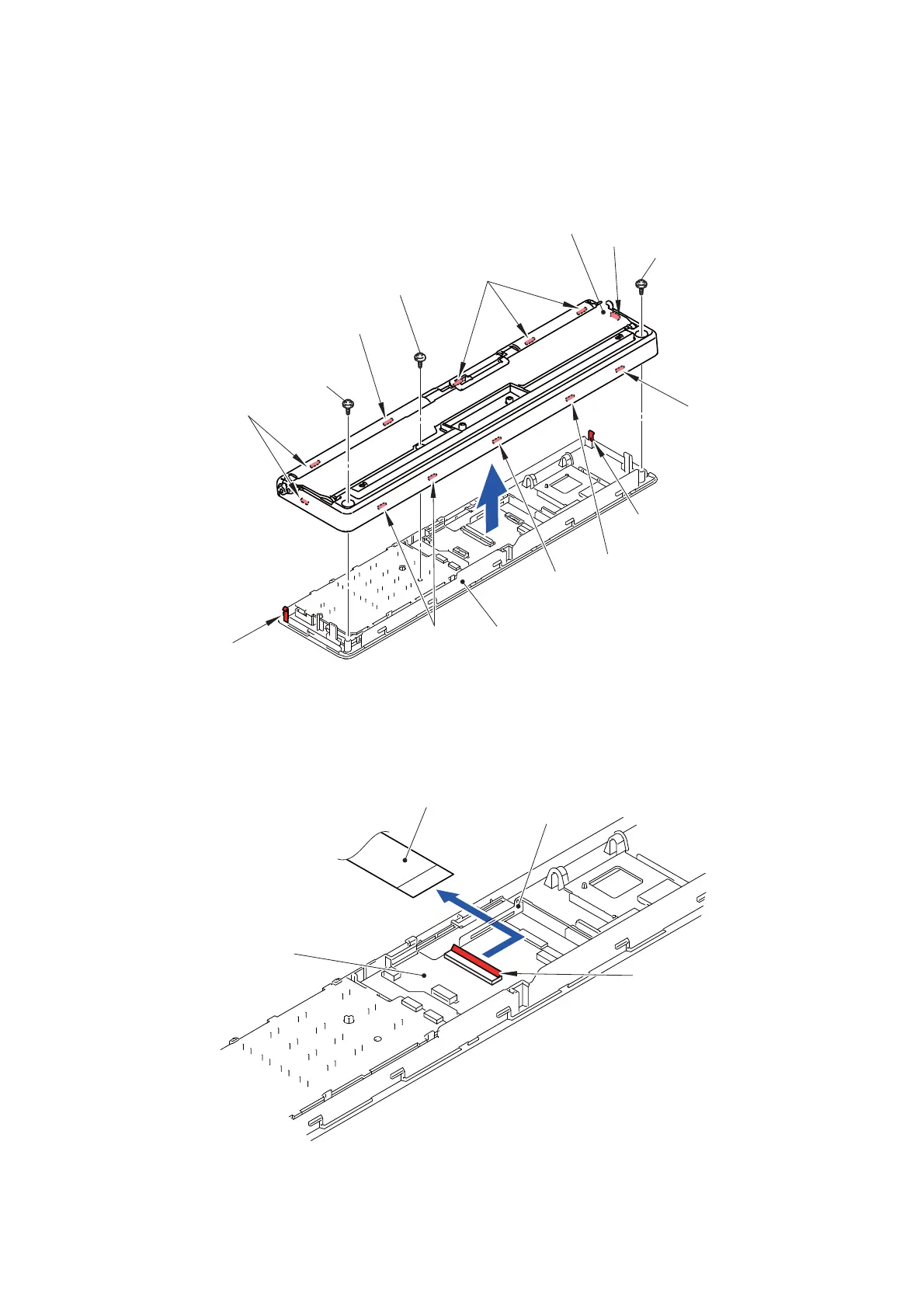

9.25 Panel Flat Cable
(1) Remove the three screws (TAPTITE CUP B M2.6x10).
(2) Release the fourteen Hooks and remove the Panel lower cover from the Panel
upper cover.
Fig. 3-69
(3) Release the lock of the Connector and remove the Panel flat cable from the LCD
PCB.
(4) Pull out the Panel flat cable from the LCD frame sheet.
Fig. 3-70
Hooks
Hooks
Hooks
Hook
Hook
TAPTITE CUP B M2.6x10
TAPTITE CUP B M2.6x10
TAPTITE CUP B M2.6x10
Panel lower cover
Panel upper cover
Hook
Hook
Hook
Hook
Hook
Panel flat cable
LCD PCB
LCD frame sheet
Connector

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
