Brother MFC-J2330DW Service Manual

3-89
Confidential

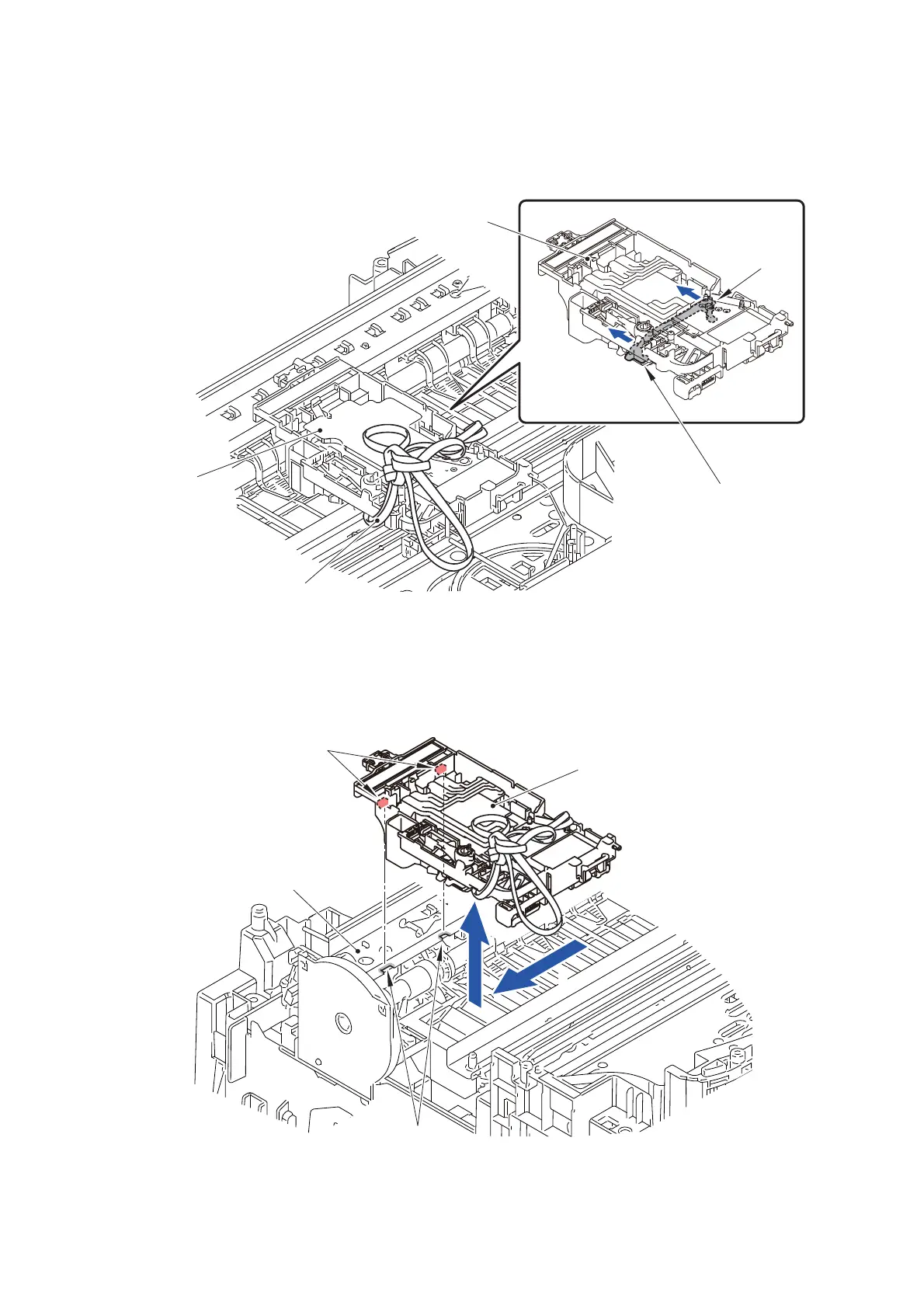

(4) As shown below, loosely tie the CR timing belt in a bundle on the Head/carriage
unit.
(5) Move the two Locks in the direction of the arrow.
Fig. 3-98
(6) Slide the Head/carriage unit in the direction of the arrow (until the two Hooks of the
Head/carriage unit fit the cutouts of the CR guide rail).
(7) Remove the Head/carriage unit from the CR guide rail.
Fig. 3-99
CR timing belt
Head/carriage unit
Head/carriage unit
Lock
Lock
Head/carriage unit
Hooks
Cutout
CR guide rail
7
6

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
