3-124
Confidential

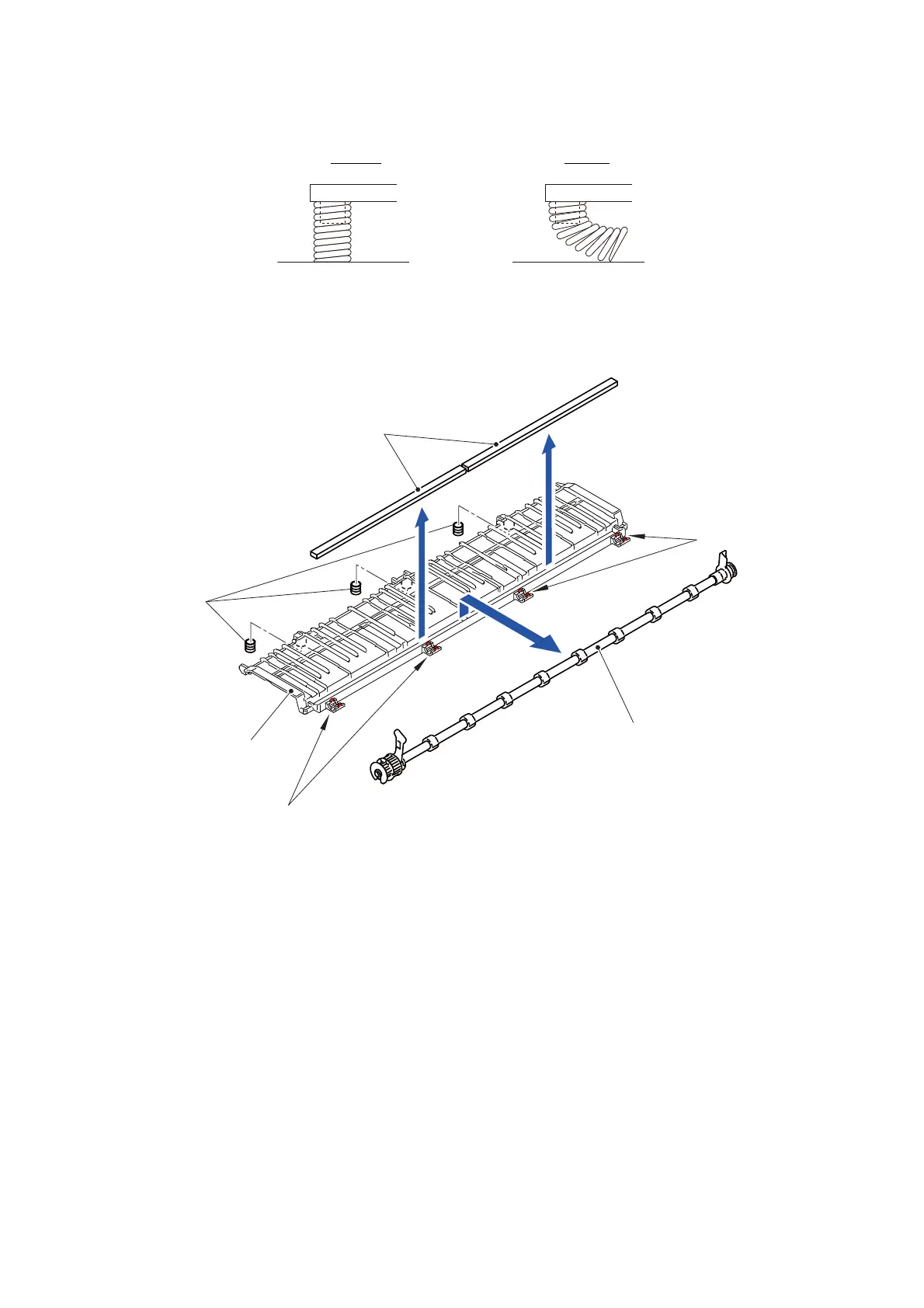

Assembling Note: Platen springs should not be bent or turned over.
Fig. 3-156
(5) Release the four Hooks and remove the Paper ejection roller from the Platen.
(6) Remove the Platen springs and Platen foam from the Platen.
Fig. 3-157
WrongCorrect
Hooks
Hooks
Paper ejection roller
Platen
Platen springs
Platen foam
