Brother MFC-J2330DW Service Manual

3-103
Confidential

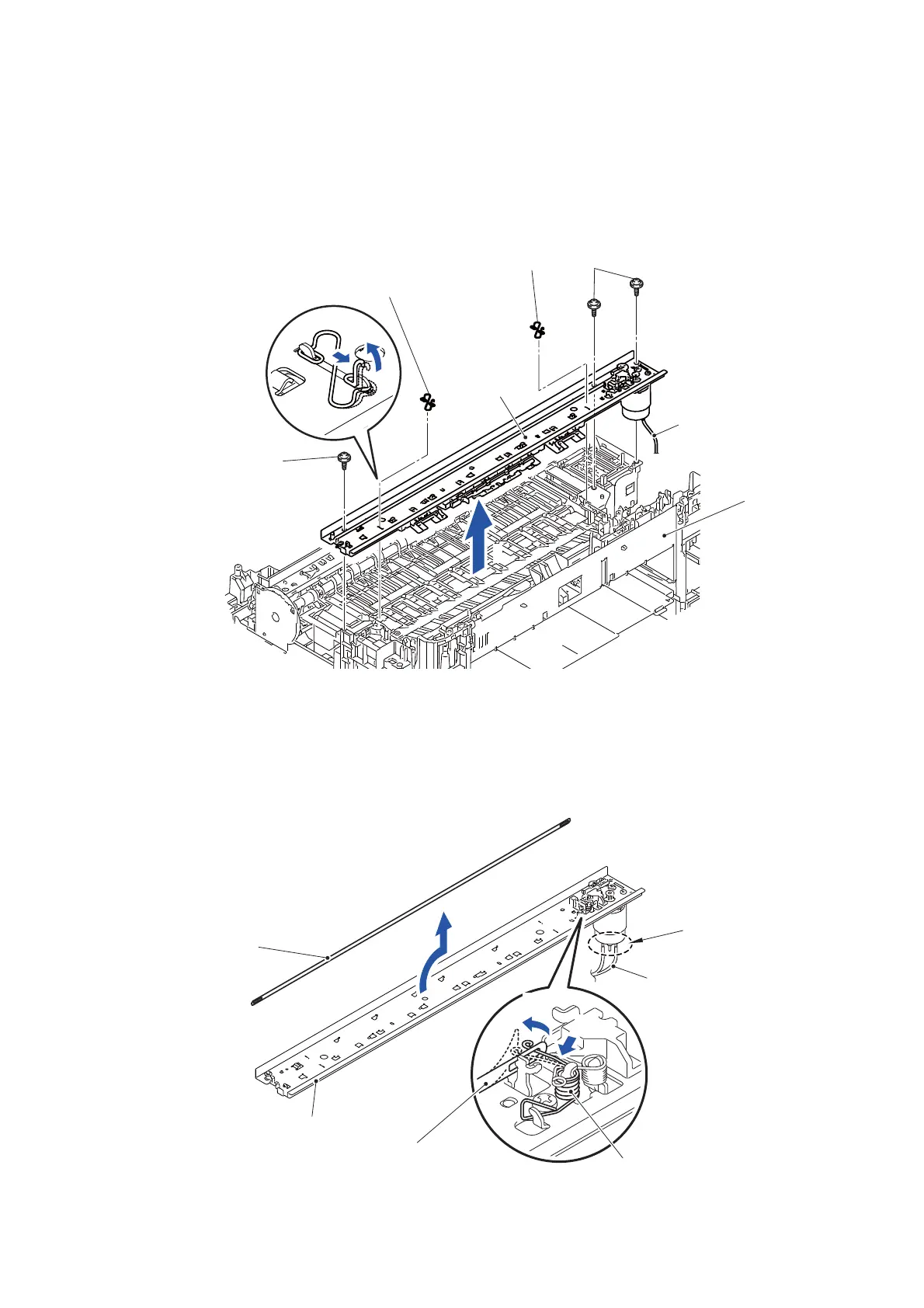

(6) Remove the three screws (TAPTITE CUP B M3x10) from the CR frame ASSY.
Assembling Note: When tightening the three screws (TAPTITE CUP B M3x10),
tighten them in the order shown in the figure.
(7) Remove the two CR frame springs from the CR frame ASSY.
(8) Remove the CR frame ASSY from the Main body.
Fig. 3-121
(9) Remove the Guard film from the Guard film spring.
(10)Remove the Guard film from the CR frame ASSY.
Note: When performing this procedure, place the unit in a way that the section “A” of
the Carriage motor harness will not be damaged.
Fig. 3-122
CR frame spring
CR frame ASSY
TAPTITE CUP B
TAPTITE CUP B M3x10
M3X10
1
2
3
7
8
Carriage motor
CR frame spring
harness
Main body
Guard film
Guard film spring
“A”
CR frame ASSY
Guard film
9b
10
Carriage motor harness
9a

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
