Brother MFC-J2330DW Service Manual

3-58
Confidential

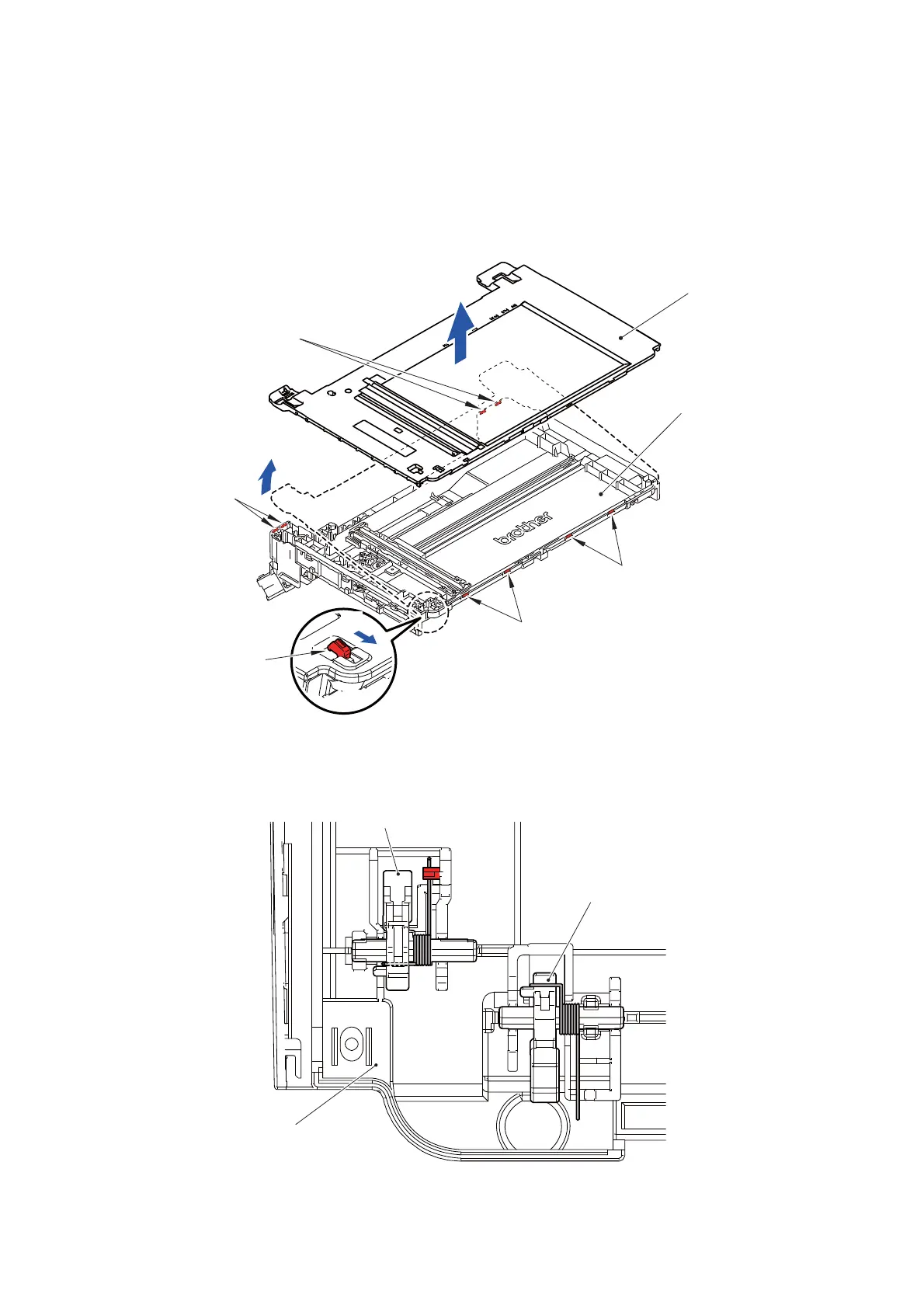

(6) Turn the Document scanner unit right side up.
(7) Release the four Hooks and lift the rear of the Scanner top cover ASSY shown in
the figure.
(8) Release the four front Hooks.
(9) While holding down the Lock lever, remove the Scanner top cover ASSY from the
Scanner base.
Fig. 3-47
Note: Be careful not to lose the Lock lever. If the Lock lever comes off, mount it as
shown in the figure.
Fig. 3-48
Scanner top cover ASSY
Hooks
Hooks
Lock lever
Hooks
Scanner base
Hooks
7
9b
9a
Lock lever
Scanner base
Lock lever

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
