Brother MFC-J2330DW Service Manual

3-116
Confidential
9.52 Paper Feed Motor

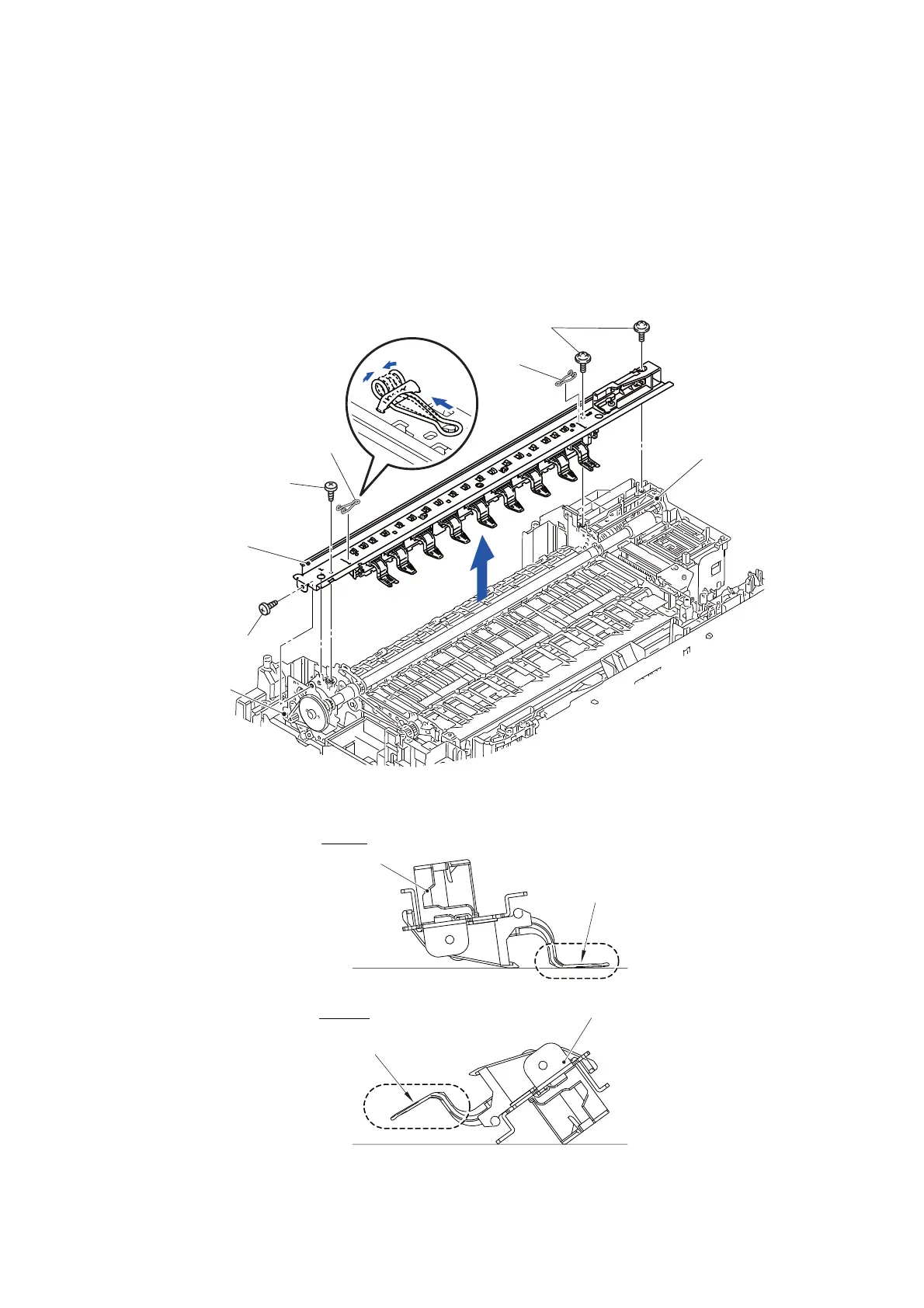

(1) Remove the two screws (SCREW BIND M3x6) from the CR guide rail.
(2) Remove the two screws (TAPTITE CUP B M3x10) from the CR guide rail.
Assembling Note: When tightening the two screws (TAPTITE CUP B M3x10), tighten
them in the order shown in the figure.
(3) Remove the two CR guide rail springs.
(4) Remove the CR guide rail from the Main body.
Fig. 3-142
Note: Do not place the removed CR guide rail with the Recording paper holder down.
Fig. 3-143
TAPTITE CUP B M3x10
CR guide rail spring
SCREW BIND M3x6
CR guide rail
SCREW BIND M3x6
Maintenance
Main body
1
2
unit
CR guide rail
spring
CR guide rail
CR guide rail
Recording paper holder
Recording paper holder
Wrong
Correct

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
