Brother MFC-J2330DW Service Manual

3-120
Confidential

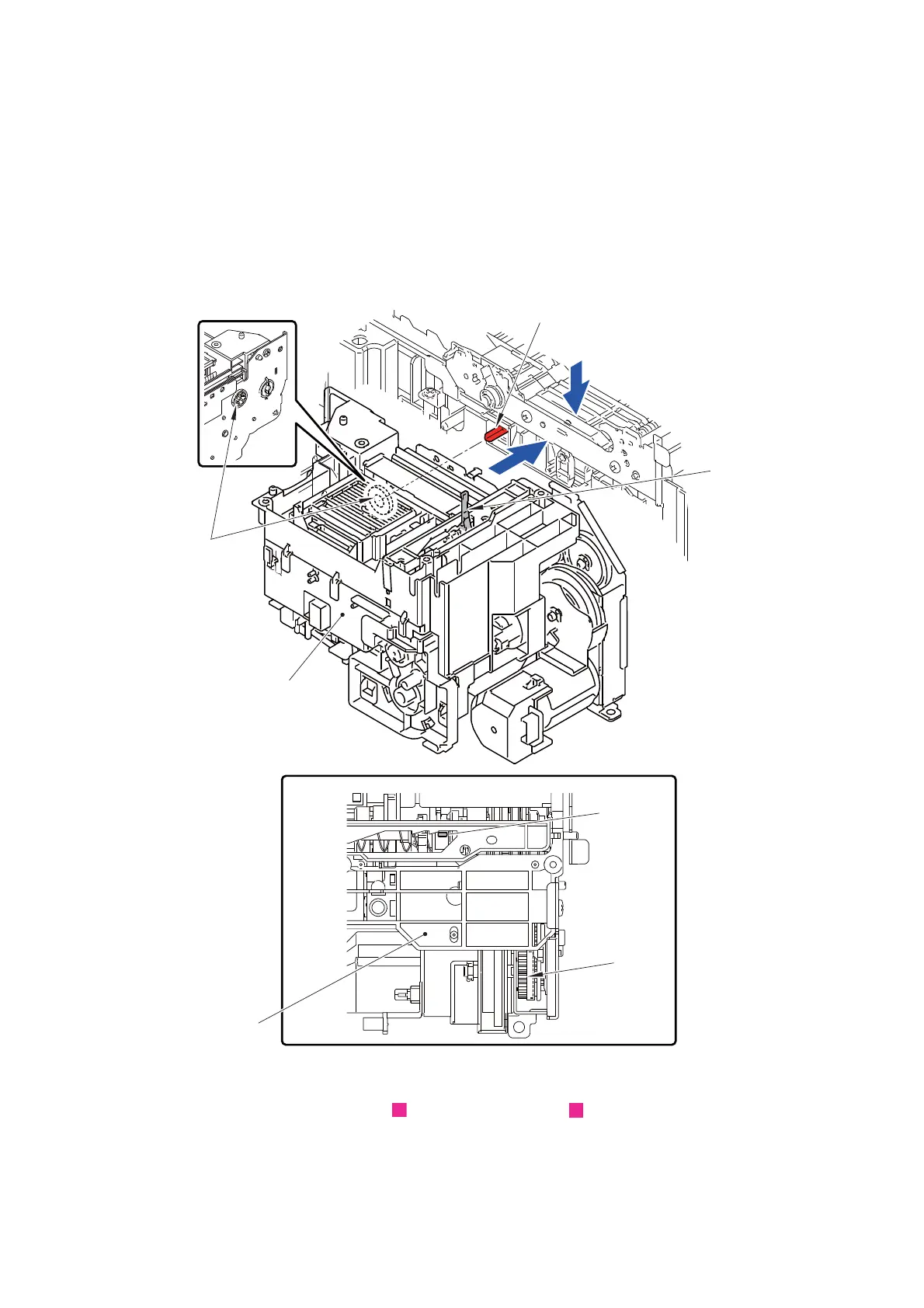

Assembling Note:
- Check that the lever of the ASF drive frame is located at the position shown in the
figure.
- Insert the shaft of the Paper feed arm frame ASSY into the hole of the Maintenance
unit.
- Turn the ASF gear and check that the shaft of the Paper feed arm frame ASSY
turns.
Fig. 3-150
Routing of harnesses: See “ Lower side cover”, “ Carriage motor harness/ASF
motor harness ASSY”.
Shaft of the Paper feed arm frame ASSY
Lever of the
Maintenance unit
Hole
ASF drive frame
Maintenance unit
ASF gear
Lever of the
ASF drive
frame
A view
<A view>
13
20

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
