Brother S-7300A - Thread Trimmer Solenoid and Tension Release Wire; Thread Trimmer Solenoid Assembly

S-7300A
6. ASSEMBLY
101
6-17. Thread trimmer solenoid and tension release wire

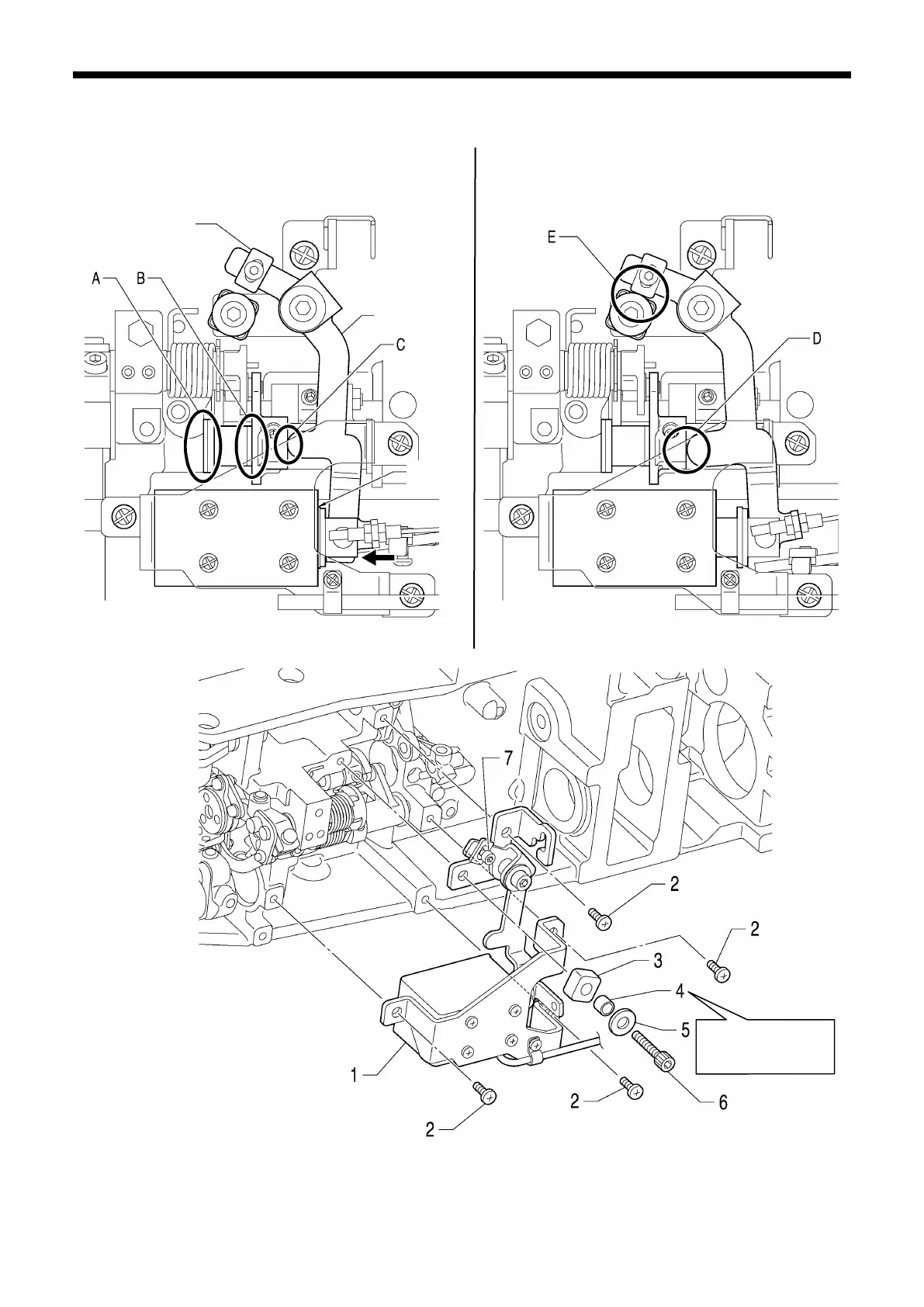

6-17-1. Thread trimmer solenoid assembly
1. Thread trimmer solenoid assembly
2. Screws [4 pcs]
3. Rubber cushion
4. Collar
5. Washer
6. Socket bolt (Provisionally tighten)
(Fully tighten after adjustment)
7. Screw (Loosen) (Fully tighten after adjustment)
1112D
1111D
1110D
Solenoid lever
Touching
Insert into the
rubber cushion 3.

Set so that there are no gaps at A, B and C when the
thread trimmer solenoid is at the "ON" position, and then
tighten 2 in the illustration below.

Set so that there are no gaps at D and E when the
thread trimmer solenoid is at the "OFF" position, and
then tighten 6 and 7 in the illustration below.
(Flush)
Solenoid stopper plate
