6. ASSEMBLY
110

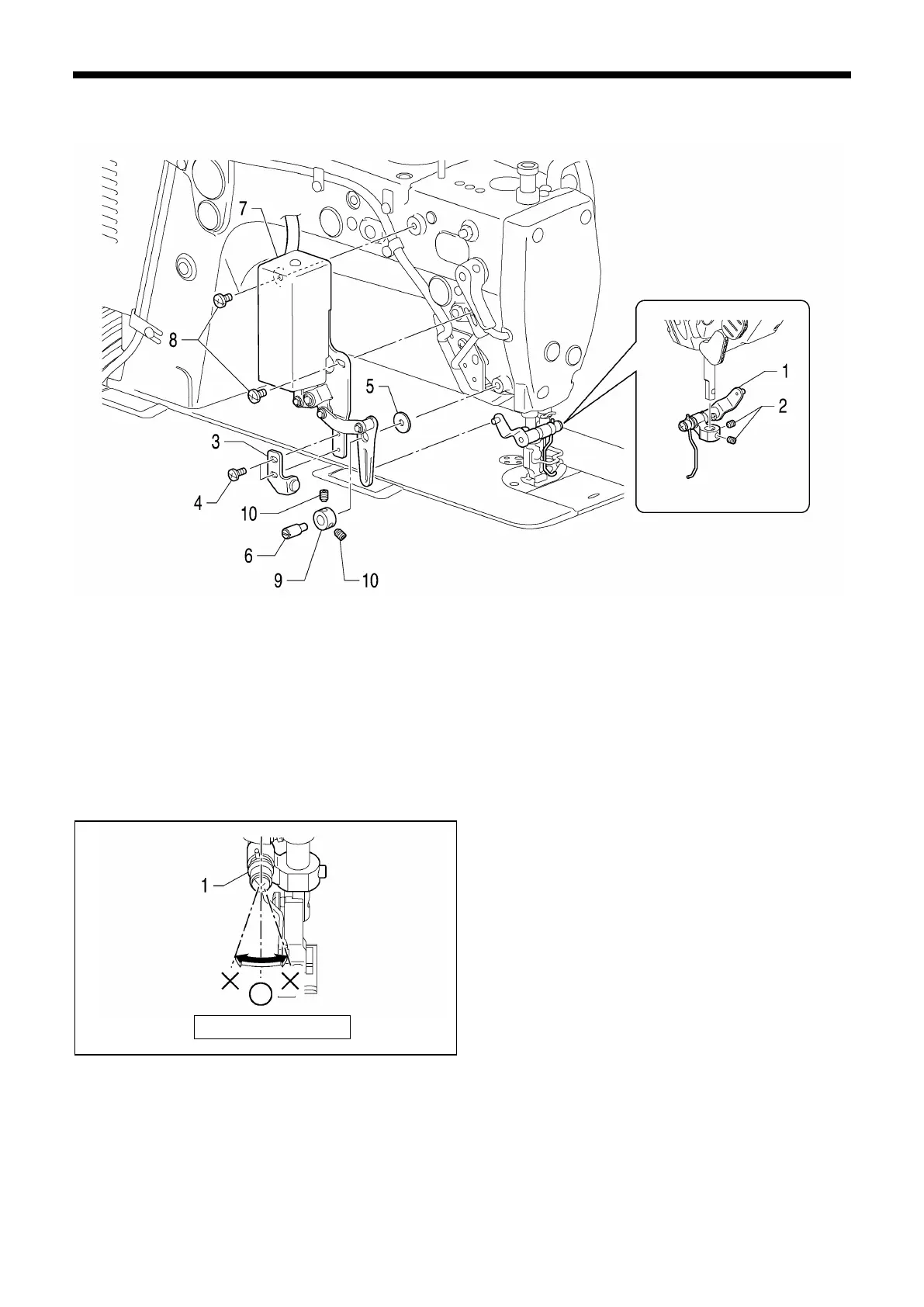

6-24. Thread wiper
R Thread wiper
<Adjustment>
1173D
1. Thread wiper crank unit (Insert)
2. Set screws [2 pcs] (Tighten)
3. Lever stopper assembly
4. Screws [2 pcs] (Tighten)
5. Washer
6. Thread wiper lever shaft
7. Thread wiper device assembly
8. Screws [2 pcs] (Tighten)
9. Set screw collar
10. Set screws [2 pcs] (Tighten)
1) Adjust the direction of the thread wiper crank unit 1.
Set so it is straight.
1175D
