S-7300A
6. ASSEMBLY
108

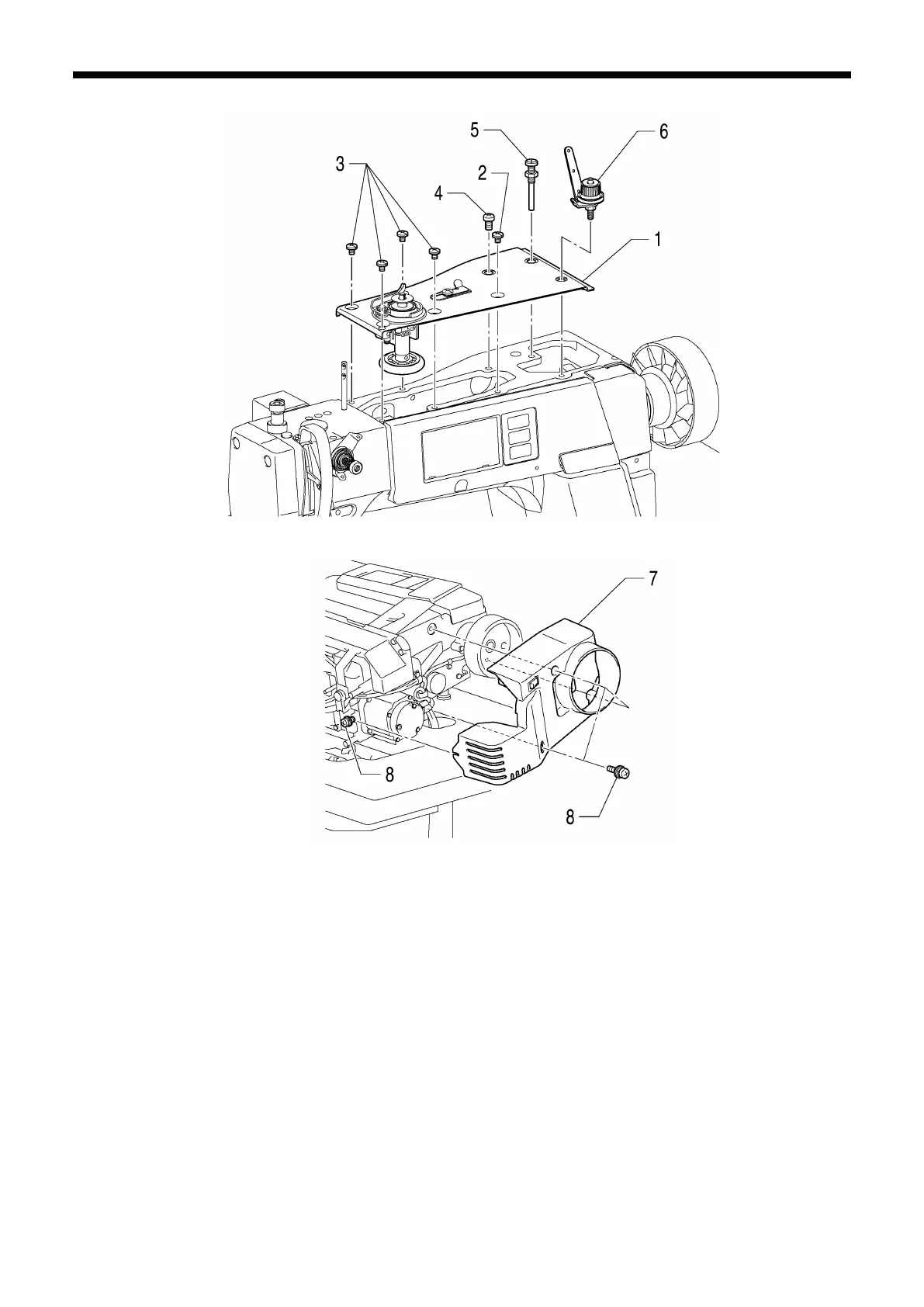

6-22-2. Top cover and pulley cover
1011D
1012D
1. Top cover
2. Screw [1 pcs]
3. Screws [4 pcs]
4. Screw
5. Knee lifter adjustment screw+Nut
6. Bobbin winder tension assembly+Nut
7. Pulley cover
8. Screws [4 pcs]
