Brother S-7300A - Feed Motor

S-7300A
8. REPLACING PARTS
155

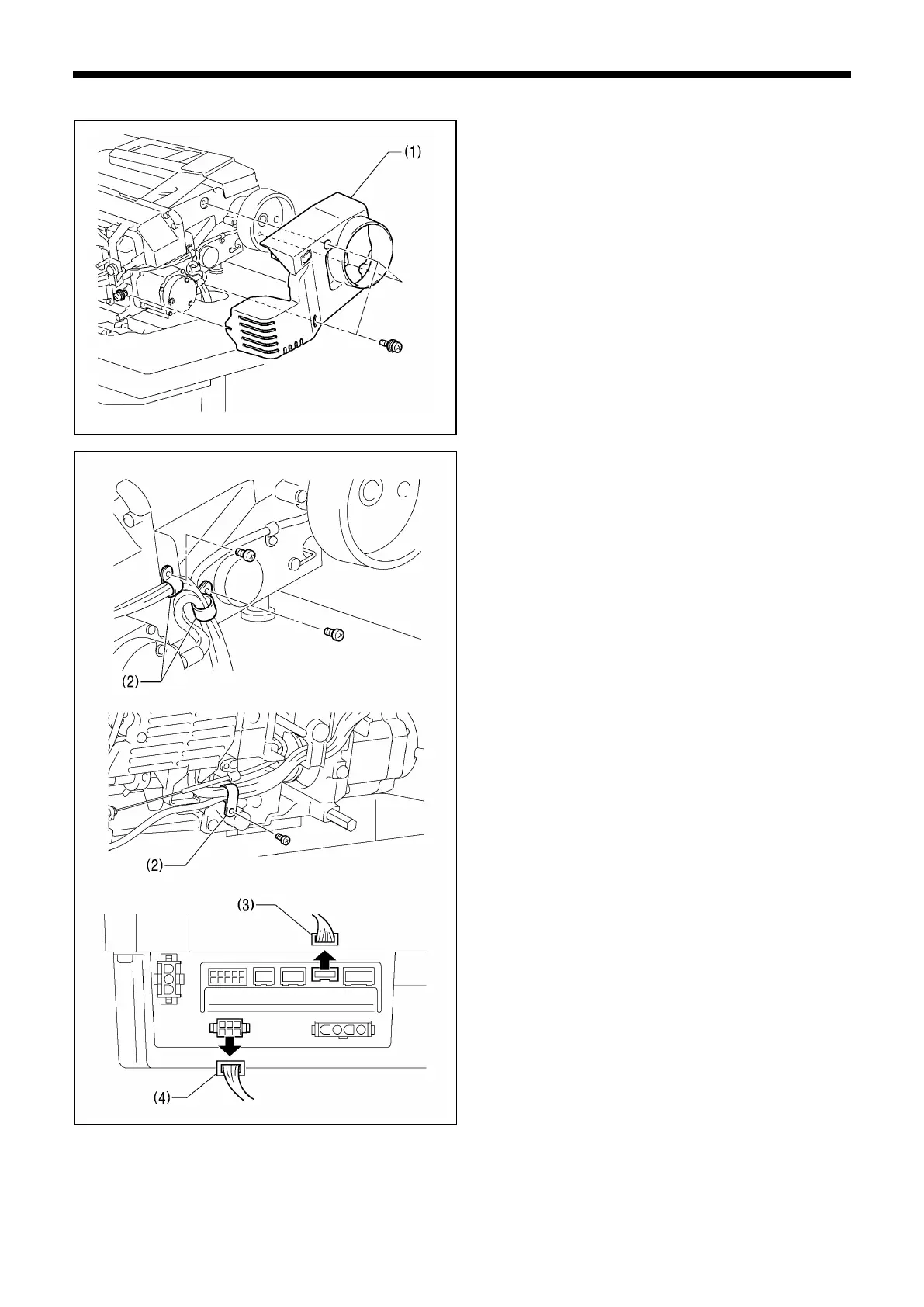

8-4. Feed motor
1. Tilt back the machine head.
2. Remove the pulley cover (1).
3. Remove the three harness clamps (2).
4. Disconnect the 6-pin feed motor encoder connector (3)
and the 6-pin feed motor connector (4).
0972D
0960D
