Brother S-7300A - Presser Foot Mechanism

S-7300A
5. DISASSEMBLY
68

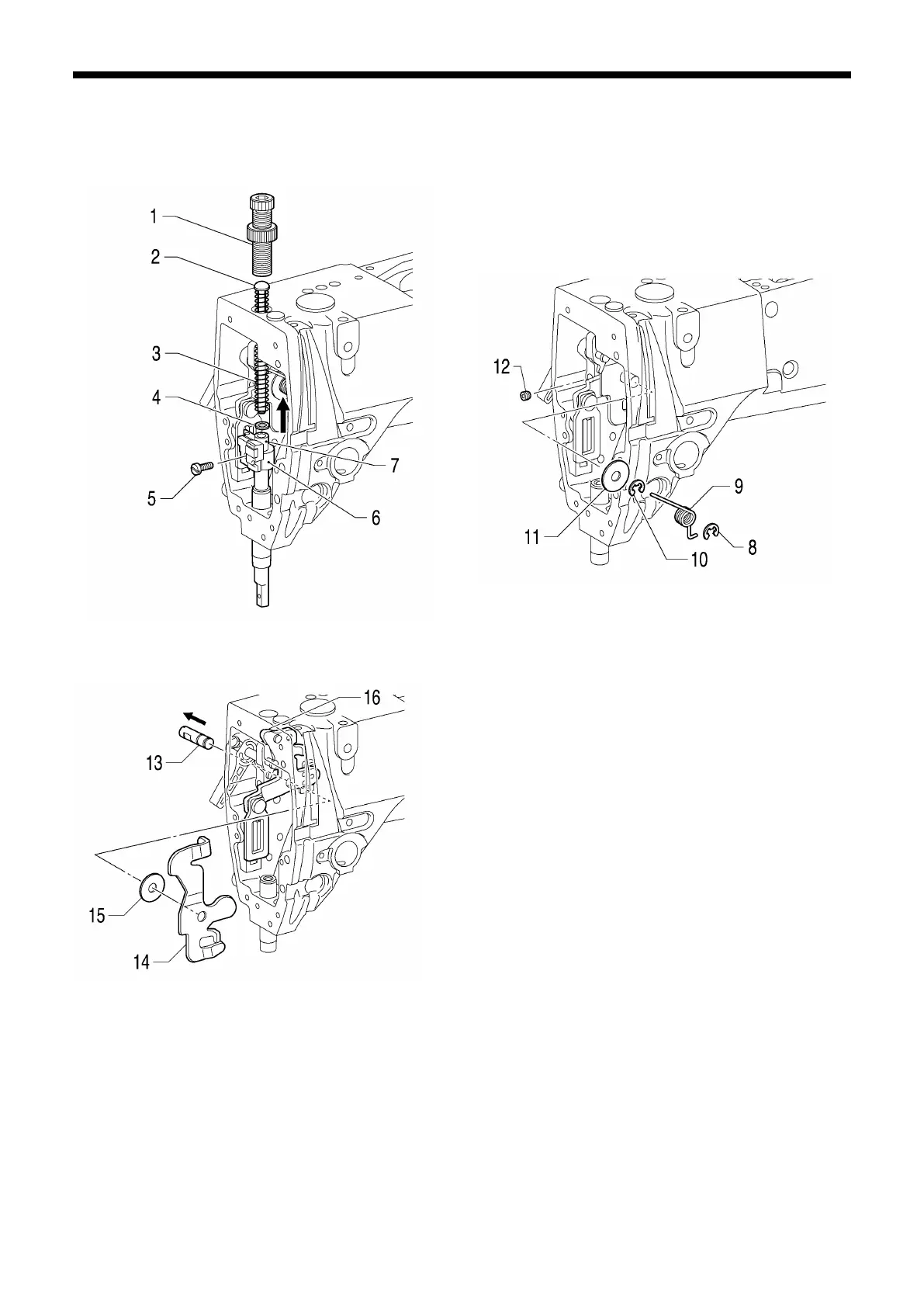

5-16. Presser foot mechanism
1. Presser adjusting screw
2. Spring guide
3. Presser bar spring
4. Washer
5. Screw
6. Presser bar guide bracket
7. Presser bar (Pull upward)
8. Retaining ring E
9. Presser bar lifter lever spring
10. Retaining ring E
11. Washer
12. Set screw
13. Presser bar lifter lever shaft (Pull out)
14. Tension release plate
15. Washer
16. Presser bar lifter lever assembly
1097D
1096D
1095D
