S-7300A
6. ASSEMBLY
112
Standard Thread wiper

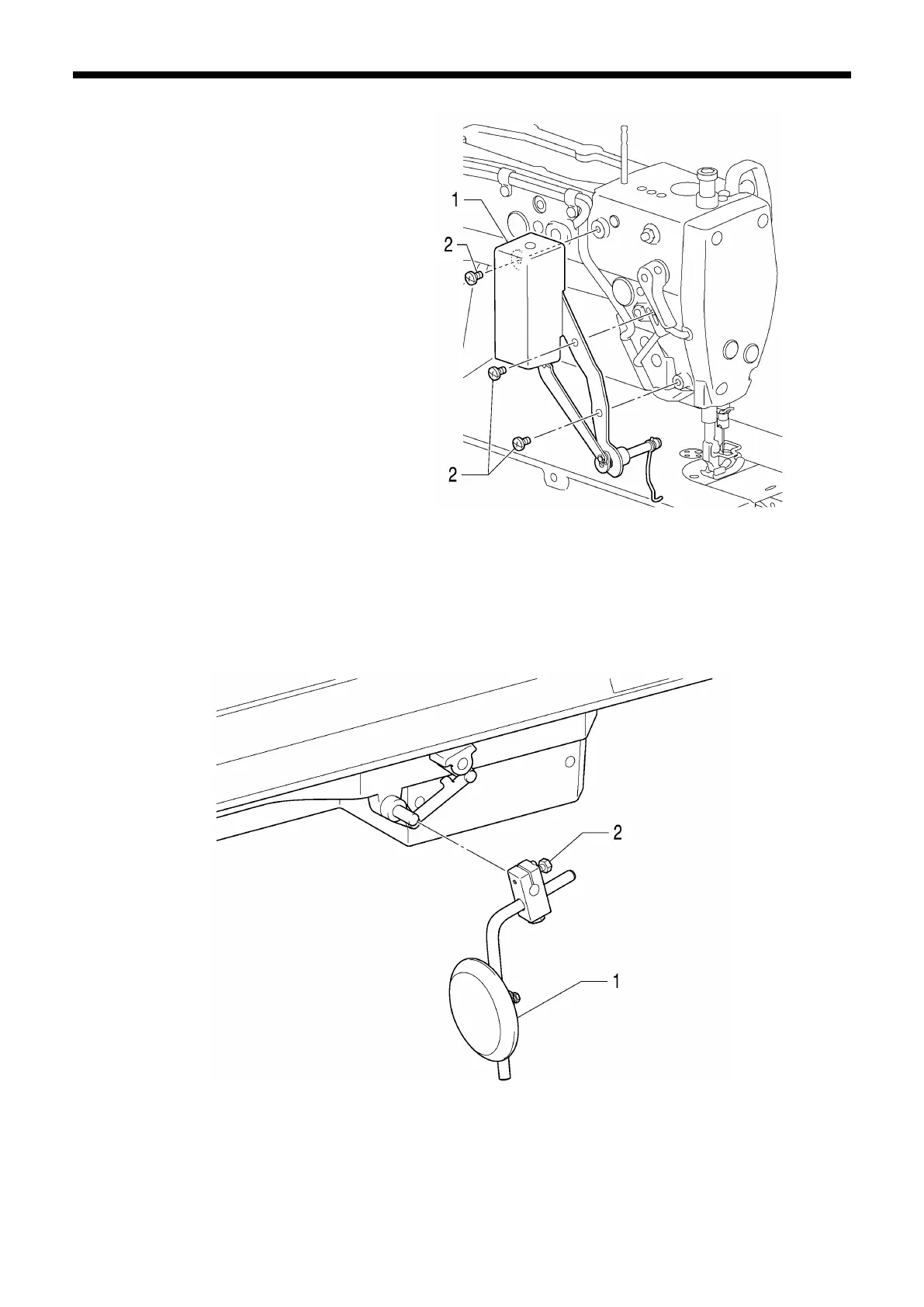

6-25. Knee lifter assembly
1123D
1. Knee lifter assembly
2. Bolt (Loosen)
1. Thread wiper device assembly
2. Screws [3 pcs] (Loosen)
1207D
