S-7300A
6. ASSEMBLY
109

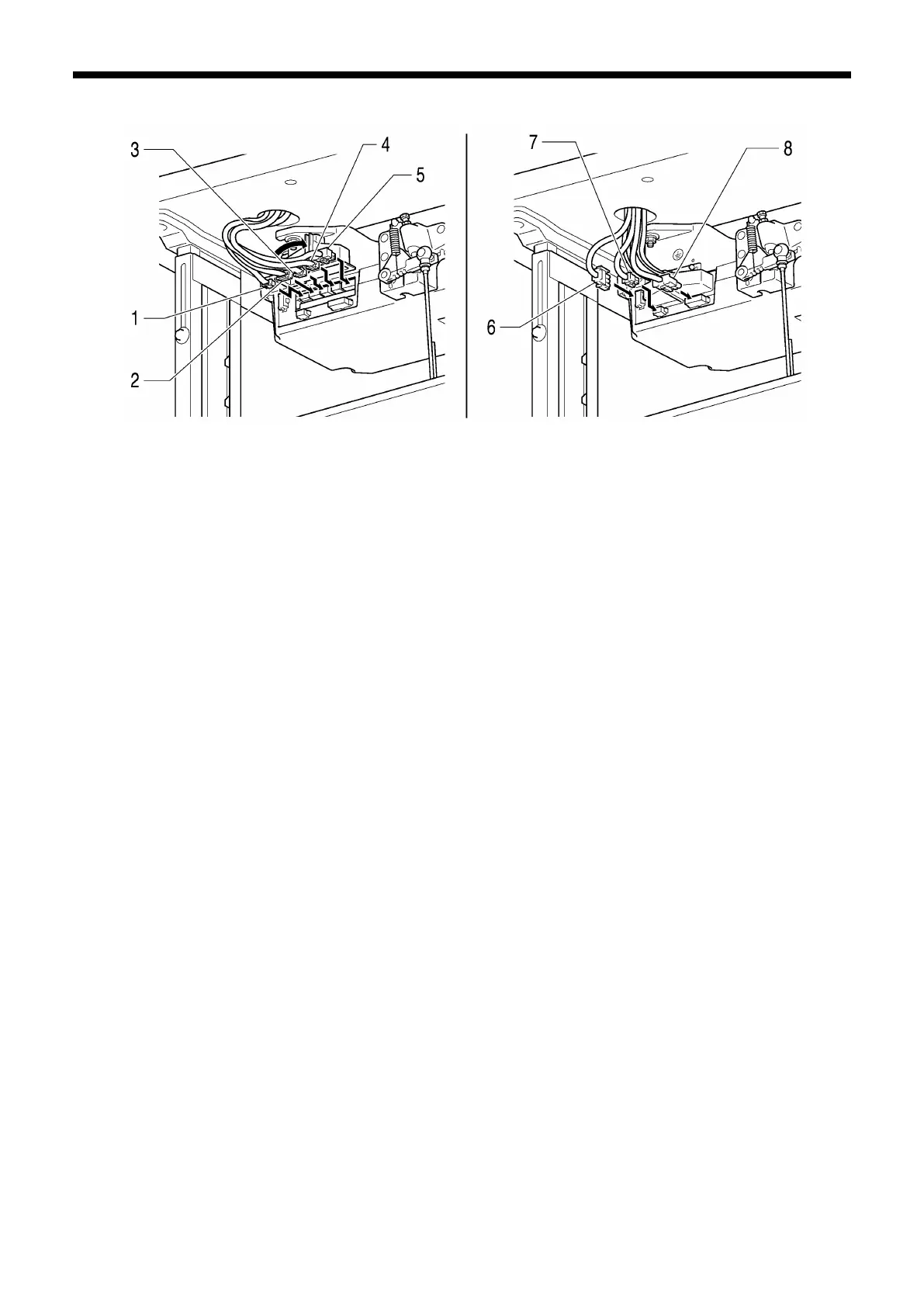

6-23. Connector
1. Solenoid connector 10-pin
2. Operation panel connector 10-pin
3. Hand switch connector 12-pin
4. Feed motor encoder connector 6-pin
5. Sewing machine motor encoder connector 16-pin
6. Power supply connector 3-pin
7. Feed motor connector 6-pin
8. Sewing machine motor connector 4-pin
1136D
