Brother S-7300A - Oil Tank and Bed Bottom Cover; Oil Tank

S-7300A
5. DISASSEMBLY
57

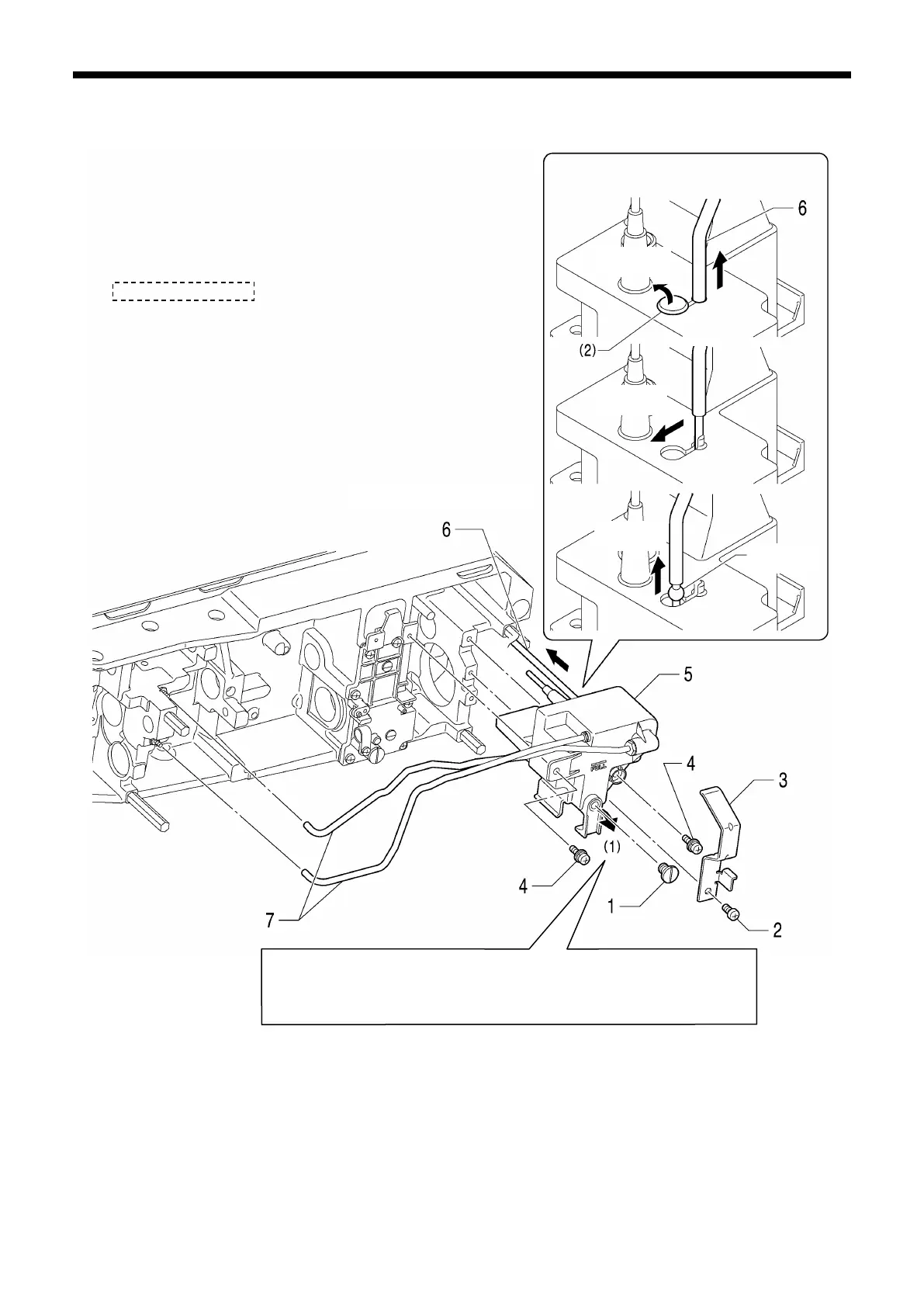

5-7. Oil tank and bed bottom cover
5-7-1. Oil tank
1. Screw
2. Screw
3. Oil tank guard
4. Screws [2 pcs]
5. Oil tank
6. Vinyl tube (Pull out)
7. Vinyl tube (Pull out)
(1) Lubricating oil
(2) Rubber cap
(-[]0[] specifications only)
Pull
Remove
Slide
Pull out
1) Hold a dish under the lubricating oil drain hole, and then remove the
screw 1 to drain out the lubricating oil (1).
2) Install the screw 1 to the lubricating oil drain hole.
1128D
Knot
(-[]0[] specifications only)
