5. DISASSEMBLY
76
5-26. Thread wiper

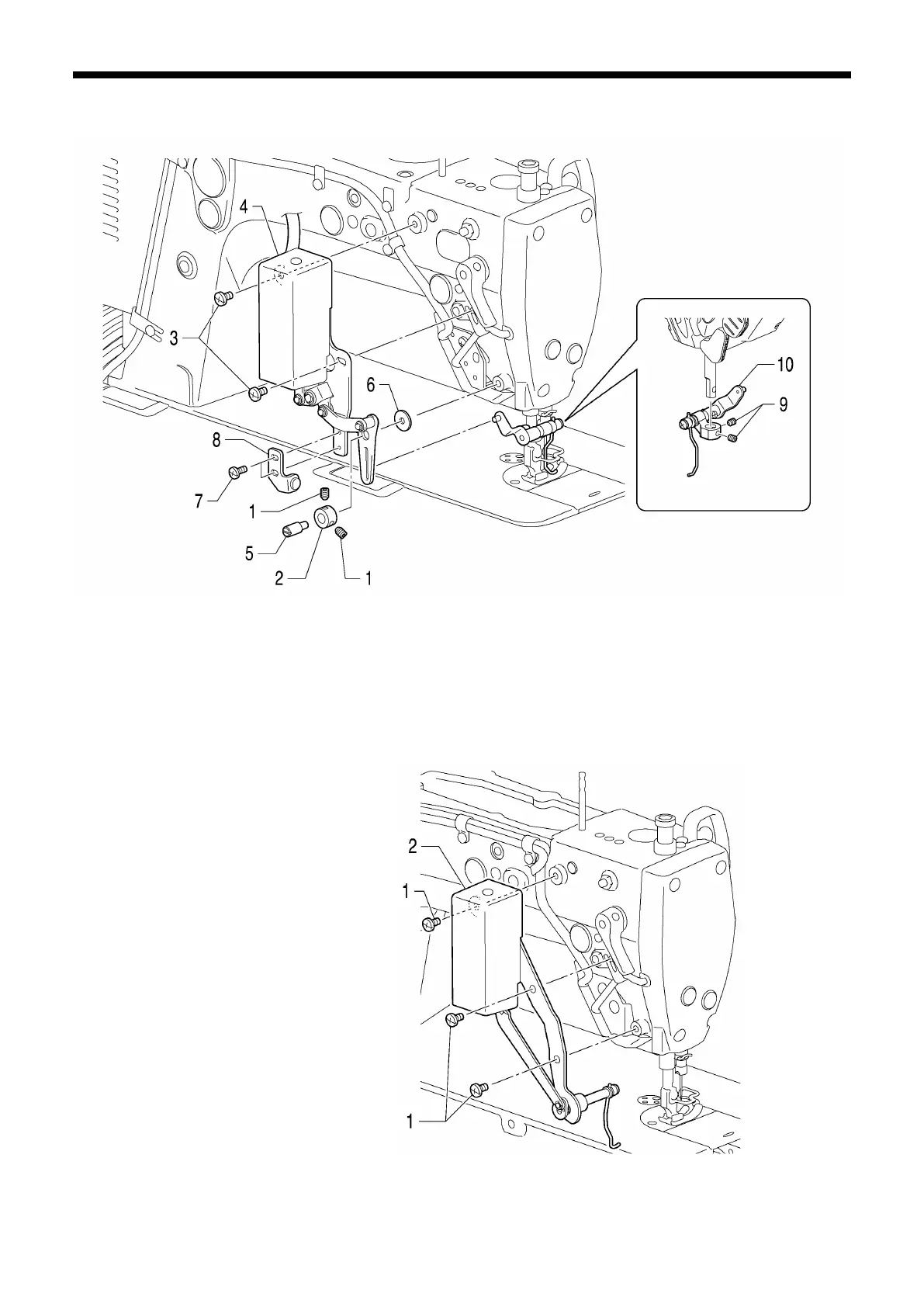

R Thread wiper
Standard Thread wiper
1. Screws [3 pcs] (Loosen)
2. Thread wiper device assembly
1. Set screws [2 pcs] (Loosen)
2. Set screw collar (Remove)
3. Screws [2 pcs] (Loosen)
4. Thread wiper device assembly (Remove)
5. Thread wiper lever shaft (Loosen)
6. Washer
7. Screws [2 pcs] (Loosen)
8. Lever stopper assembly
9. Set screw (Loosen)
10. Thread wiper crank unit (Pull out)
