7. ADJUSTMENTS
S-7300A
119
7-5. Adjusting the feed (position, maximum pitch, vertical movement, etc.)
7-5-1. Adjusting the feed motor home position
・ The pulse motor home position and mechanism home position should be the same.

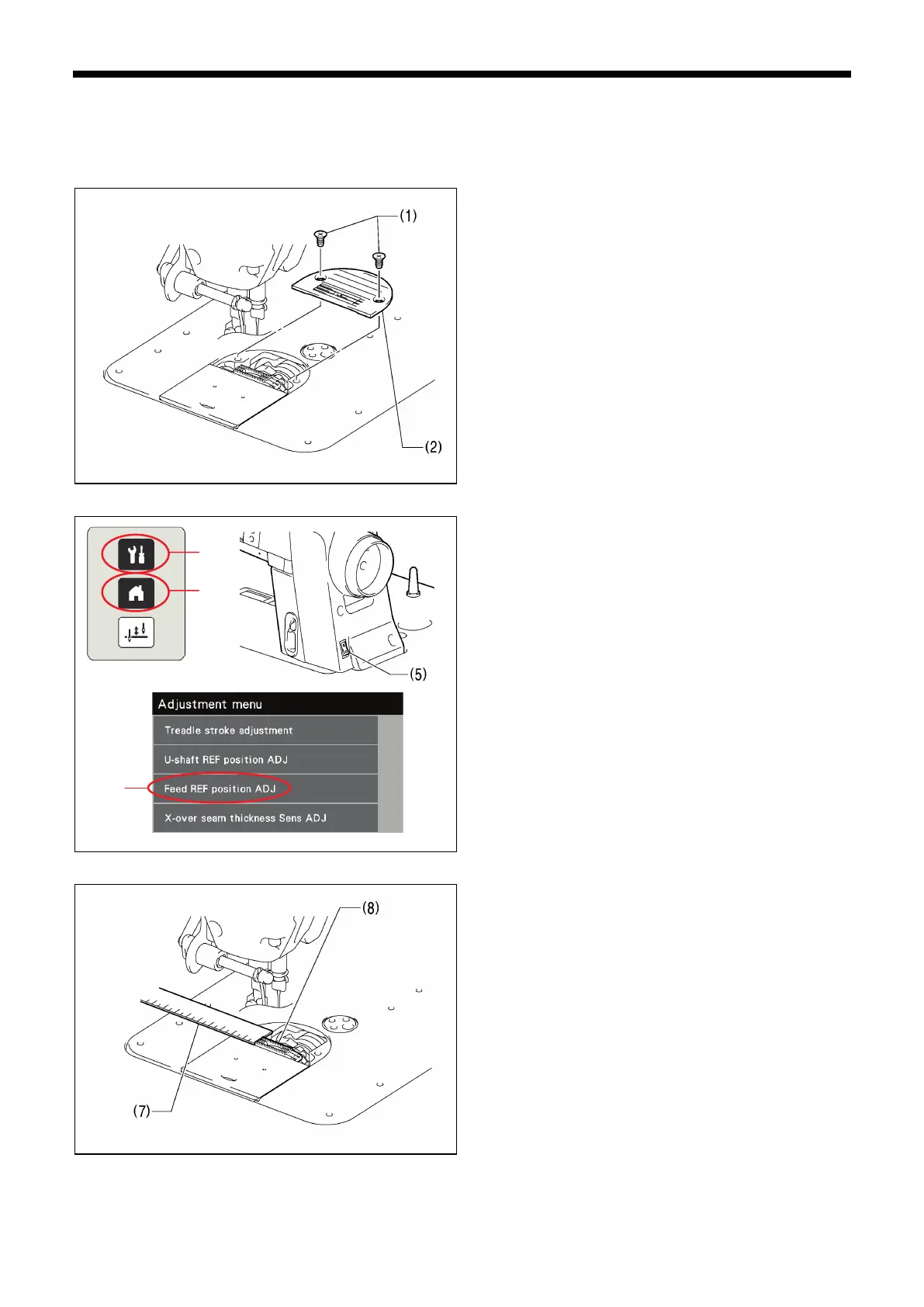

1. Remove the two screws (1), and then remove the needle
plate (2).
2. While pressing the menu key (3) and the home key (4),
press the power switch (5).
3. Select "Feed REF position ADJ" (6).
4. Place a scale (7) or similar against the feed dog (8).
1089D
1090D
(3)
(4)
(6)
1091D
