Brother S-7300A - Main Shaft Motor

S-7300A
5. DISASSEMBLY
72

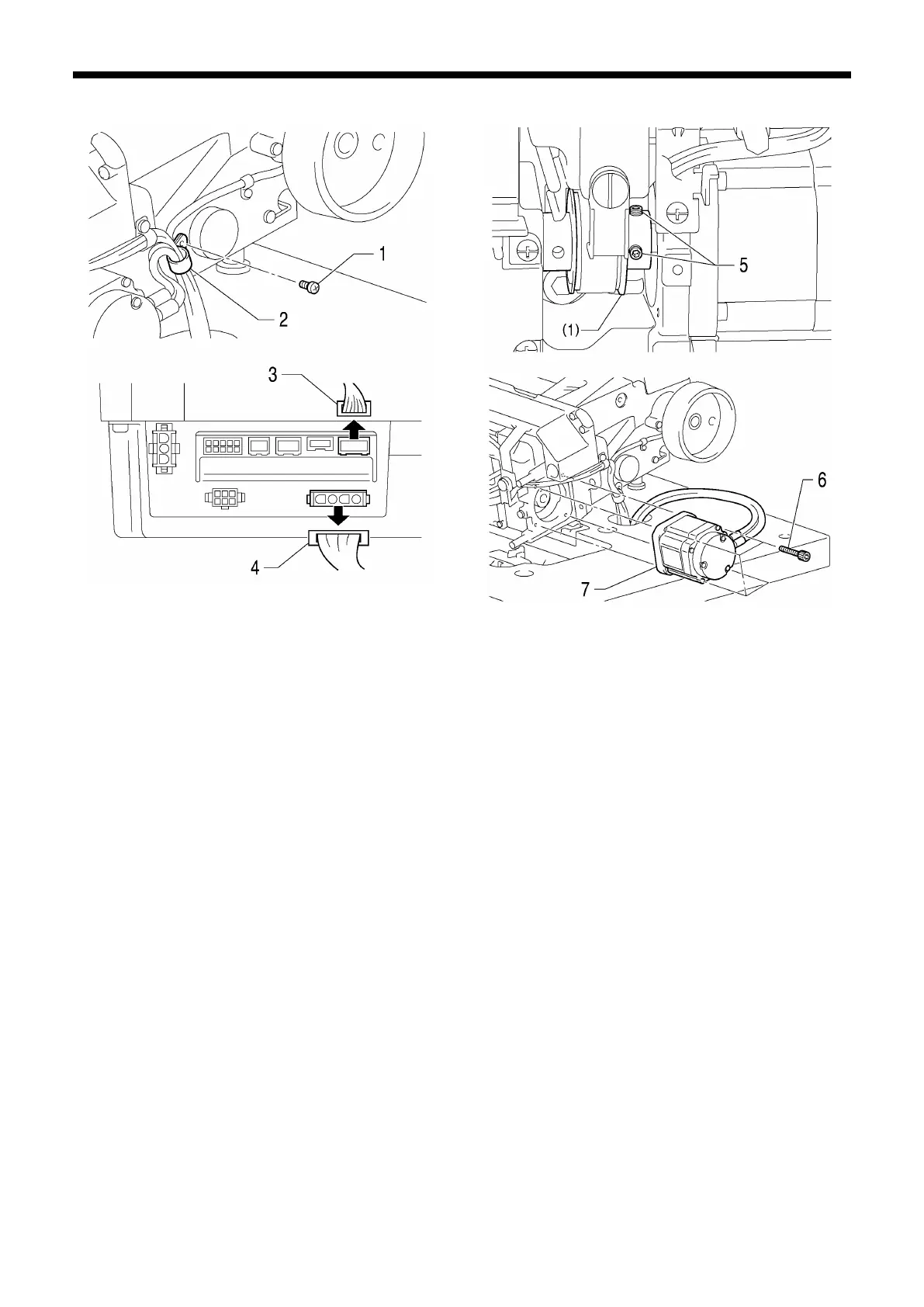

5-21. Main shaft motor
1. Screw
2. Harness Clamp
3. Sewing machine motor encoder connector 16-pin
4. Sewing machine motor connector 4-pin
5. Set screws [2 pcs]
6. Set screws [4 pcs]
7. Sewing machine motor
(1) Timing pulley D
1143D
1144D
