8. REPLACING PARTS
160
8-6. Panel
8-6-1. Replacing panel

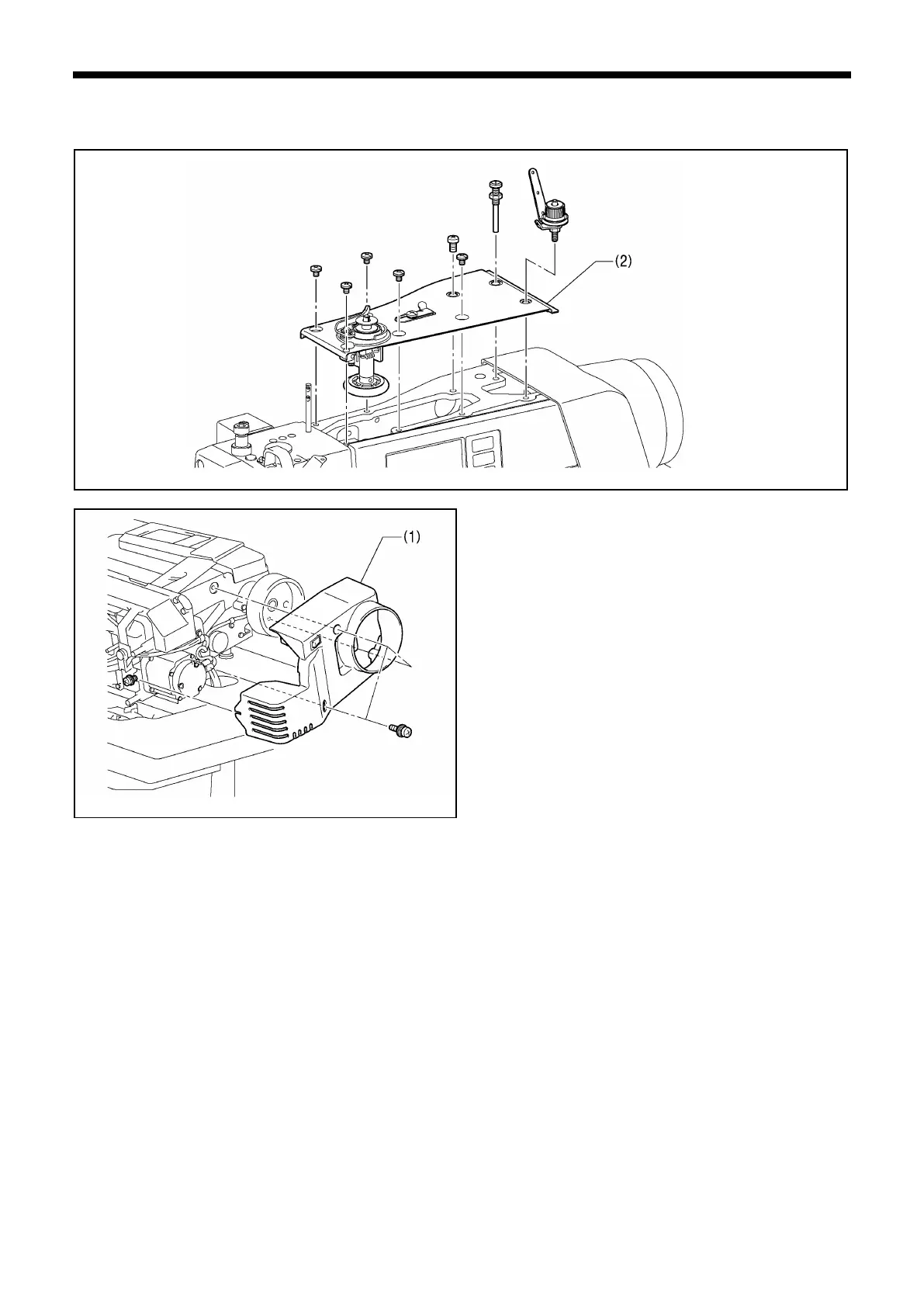

1. Tilt back the machine head.
2. Remove the pulley cover (1).
3. Return the machine head to its original position.
4. Remove the top cover (2).
1029D
1030D
