S-7300A
8. REPLACING PARTS
161

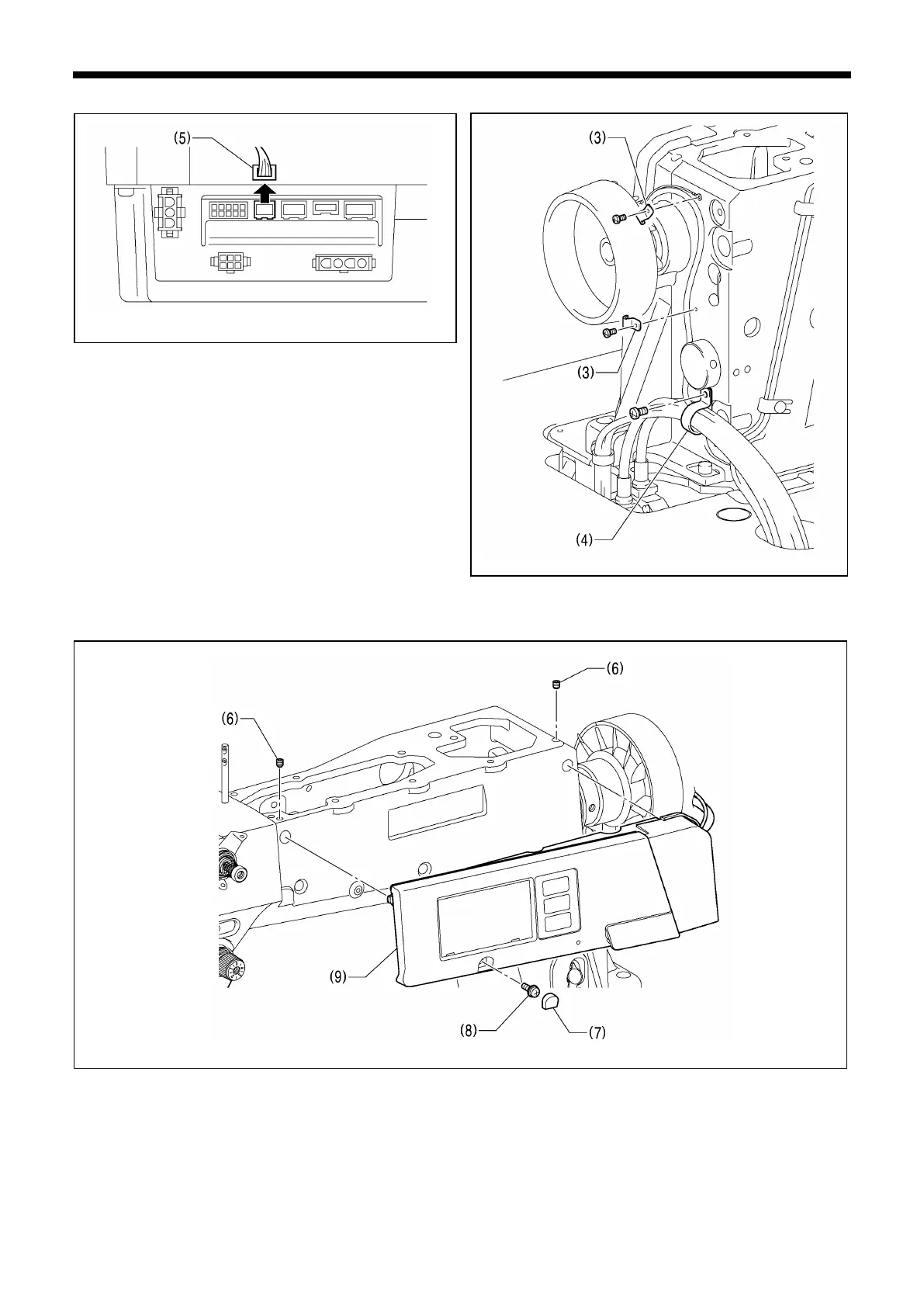

5. Remove the cord holder (3) and the harness clamp (4).
6. Disconnect the 10-pin operation panel connector (5).
7. Loosen the two set screws (6).
8. Remove the cap (7) and the screw (8).
9. Remove the panel (9).
1031D
1032D
1033D
