S-7300A
6. ASSEMBLY
98
6-16. Hand switch and X-over seam sensor
6-16-1. Fase plate, X-over seam sensor and Hand switch assembly
1003D
1004D

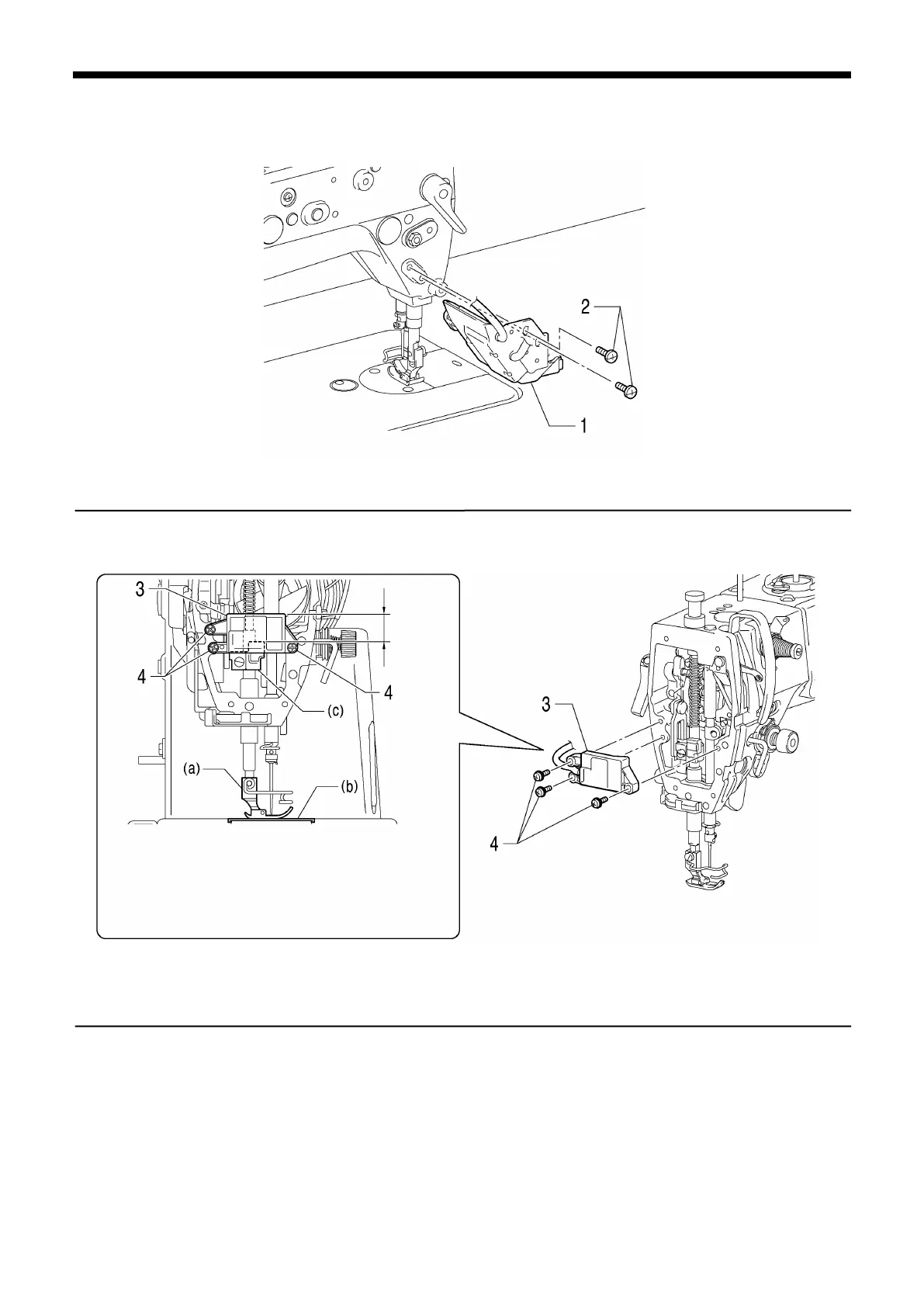

1. Hand switch assembly
2. Screws [2 pcs] (Provisionally tighten)
Lower the work clamp, and then tighten the screw
4 so that the distance between the presser bar
bracket (c) and the top of the X-over seam sensor
3 is 21.5 mm while the presser foot (a) and the
needle plate (b) are touching.
21.5mm
3. X-over seam sensor assembly
4. Screws [3 pcs]
<Premier specifications>
