Brother S-7300A - Main Shaft Motor

S-7300A
8. REPLACING PARTS
151
8-3. Main shaft motor

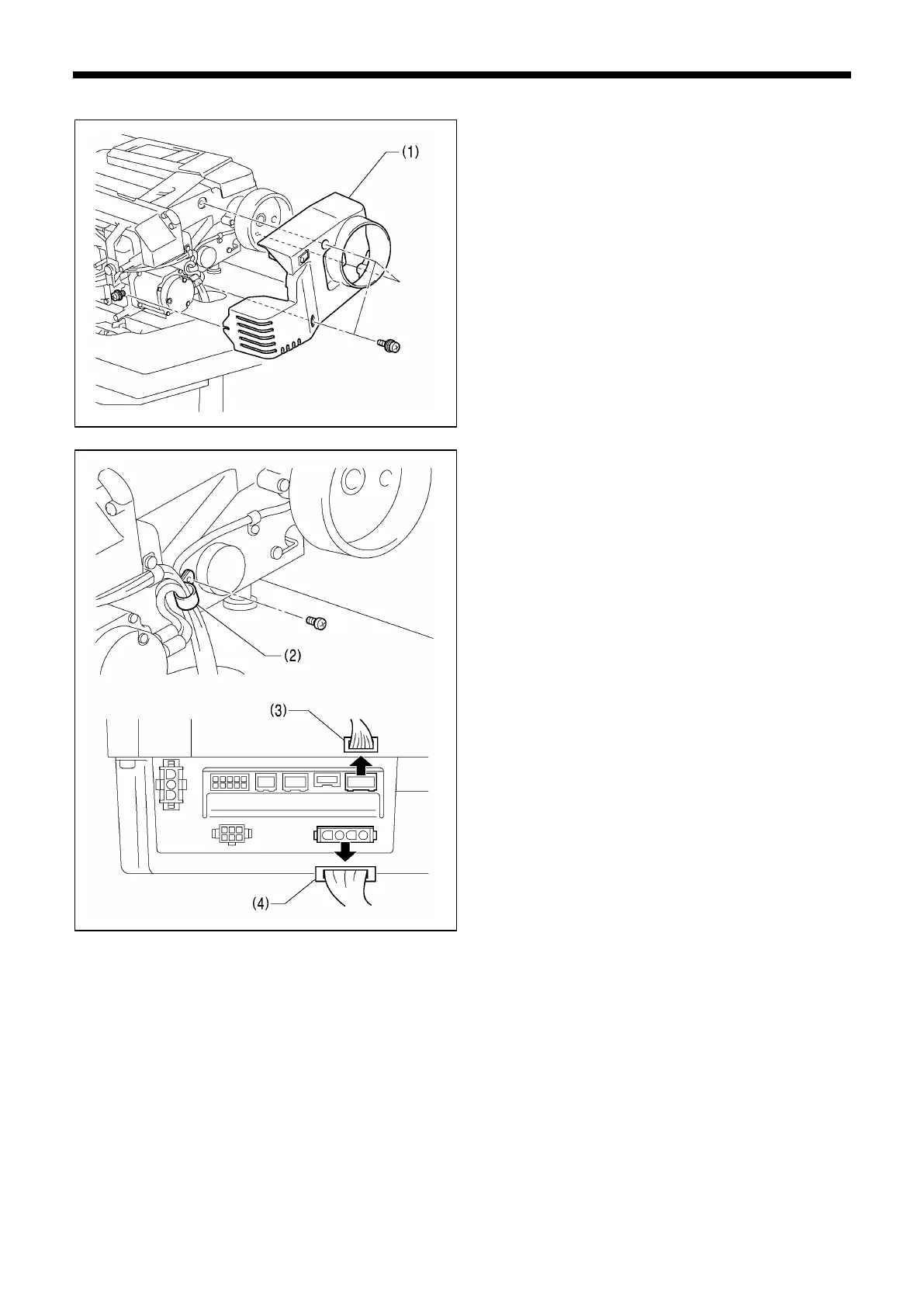

1. Tilt back the machine head.
2. Remove the pulley cover (1).
3. Remove the harness clamp (2).
4. Disconnect the 16-pin sewing machine motor encoder
connector (3) and the 4-pin sewing machine motor
connector (4).
0960D
0961D
