Brother S-7300A - Feed Mechanism; Disassembling the Feed Mechanism

S-7300A
5. DISASSEMBLY
66
5-15. Feed mechanism

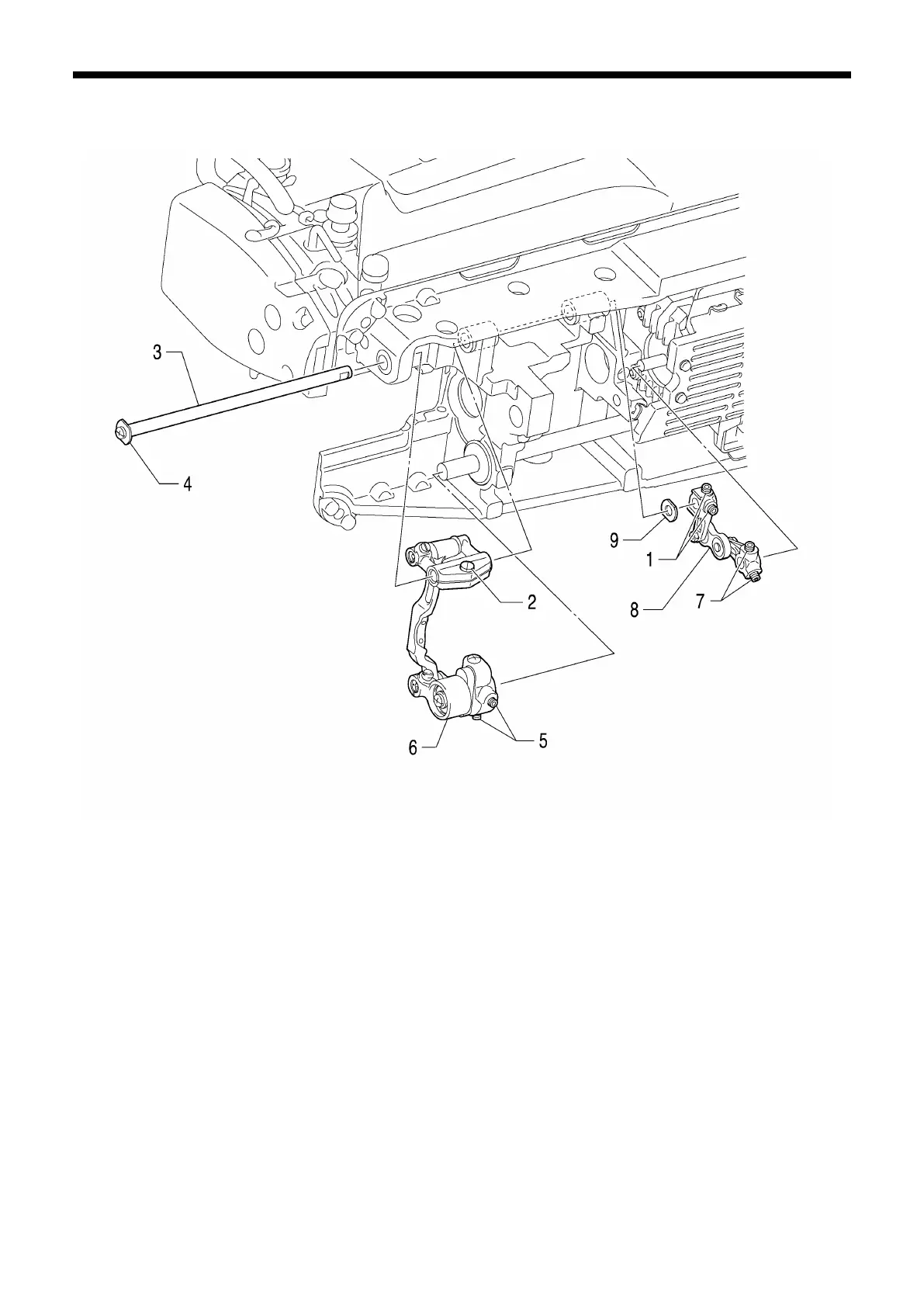

5-15-1. Disassembling the feed mechanism
1139D
1. Set screws [2 pcs] (Loosen)
2. Screw (Loosen)
3. Feed rock shaft (Pull out)
4. Washer
5. Set screws [2 pcs] (Loosen)
6. Feed bar unit
7. Set screws [2 pcs] (Loosen)
8. Feed rocker link unit
9. Washer
