S-7300A
5. DISASSEMBLY
52
5-4. Covers

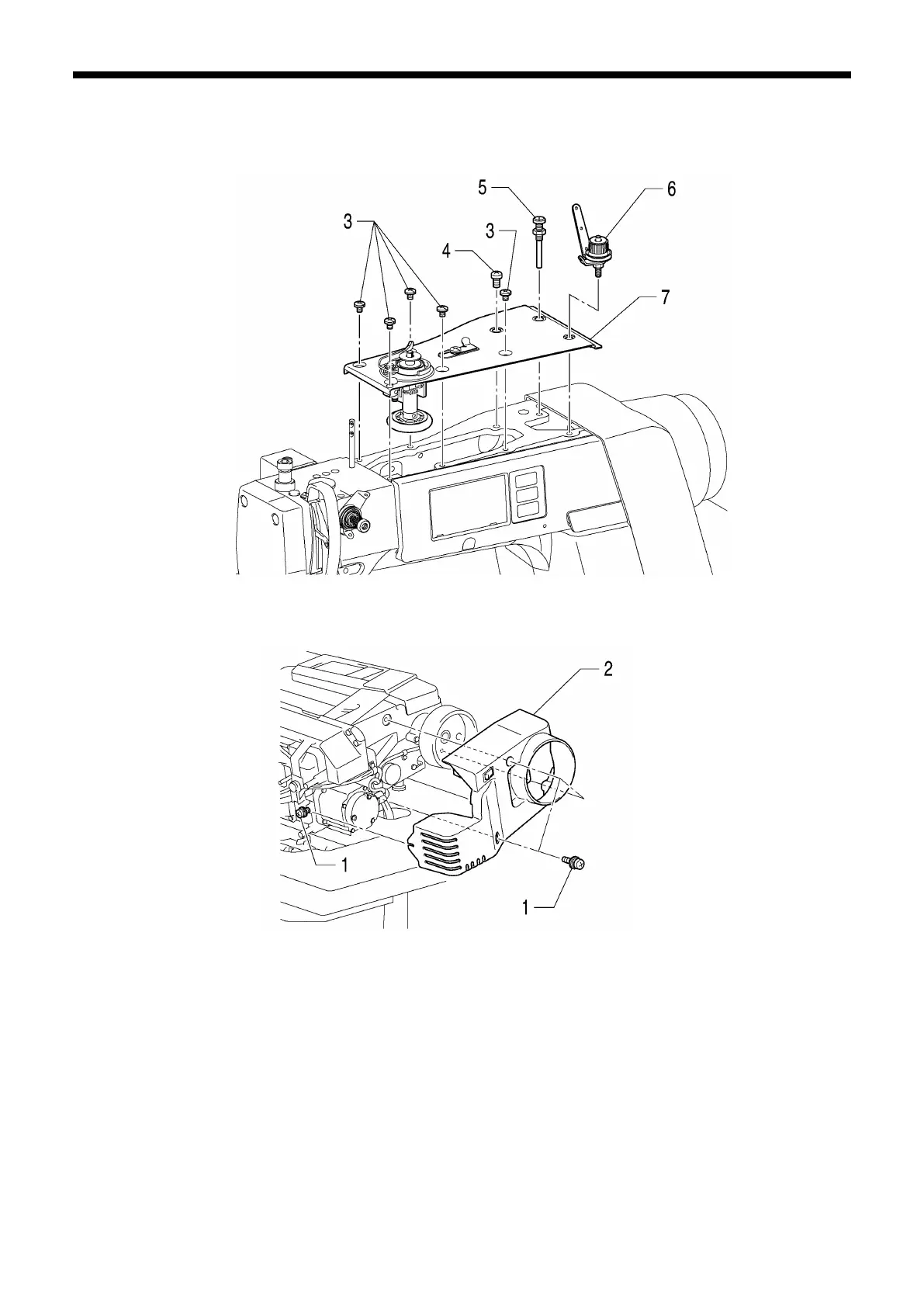

5-4-1. Top cover and pulley cover
0993D
0994D
1. Screws [4 pcs]
2. Pulley cover
3. Screws [5 pcs]
4. Screw
5. Knee lifter adjustment screw+Nut
6. Bobbin winder tension assembly+Nut
7. Top cover
