Brother S-7300A - Needle Bar and Thread Take-Up Mechanism

S-7300A
5. DISASSEMBLY
70

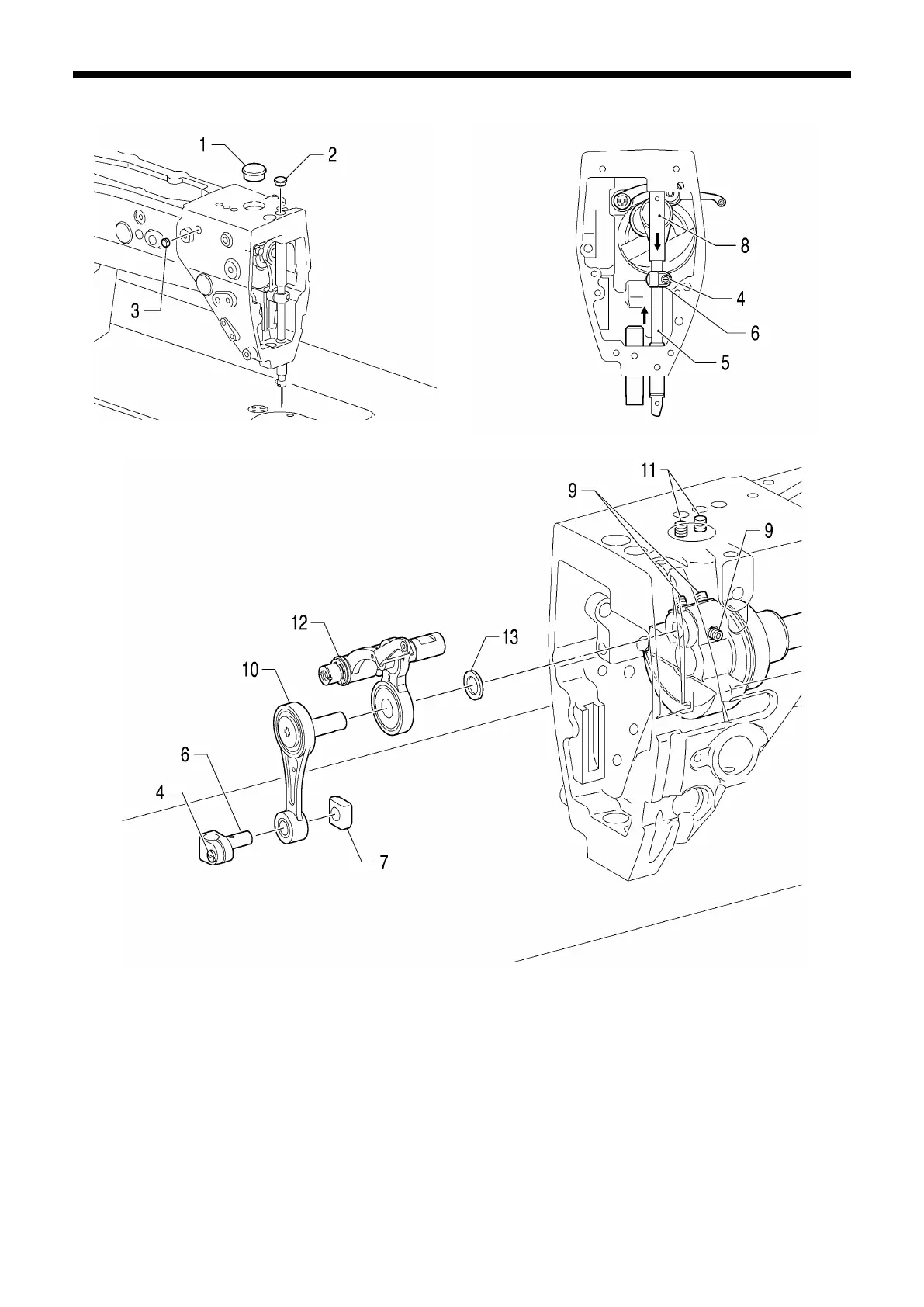

5-19. Needle bar and thread take-up mechanism
1105D
1. Rubber cap
2. Rubber cap
3. Rubber cap
4. Screw (Loosen)
5. Needle bar
6. Needle bar clamp
7. Needle bar guide slide block
1146D
8. Needle bar bush U
9. Set screws [3 pcs] (Loosen)
10. Needle bar crank
11. Set screws [2 pcs] (Loosen)
12. Thread take-up lever assembly
13. Washer
1147D
