Brother S-7300A - Pulley and Main Shaft Motor

S-7300A
6. ASSEMBLY
82

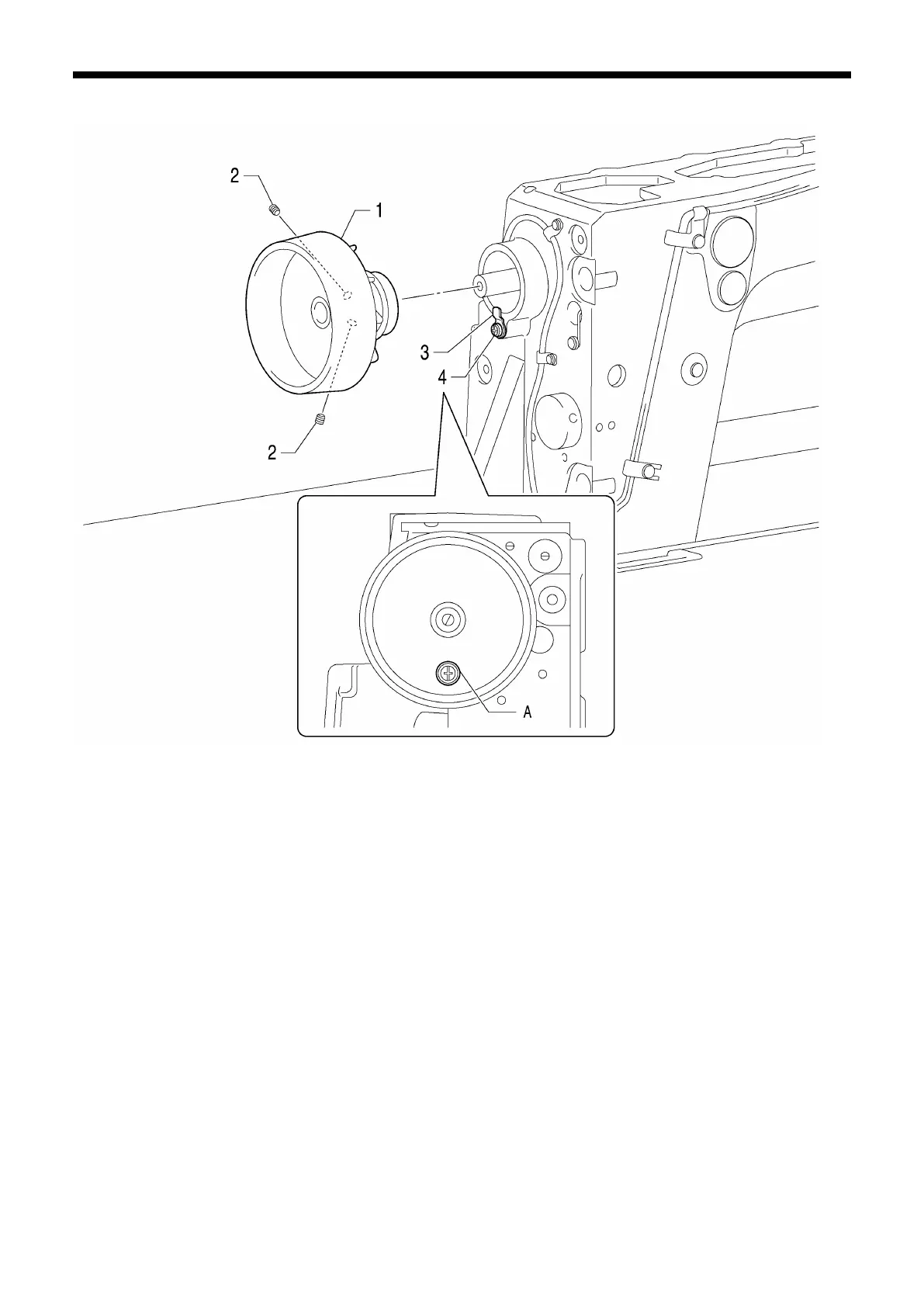

6-5. Pulley and main shaft motor
1122D
1. Pulley assembly
2. Set screws [2pcs] (Align the first set screw in the rotation direction with the screw stop)
3. Bearing holder
4. Screw (Pass the tool through hole A)
