S-7300A
5. DISASSEMBLY
54

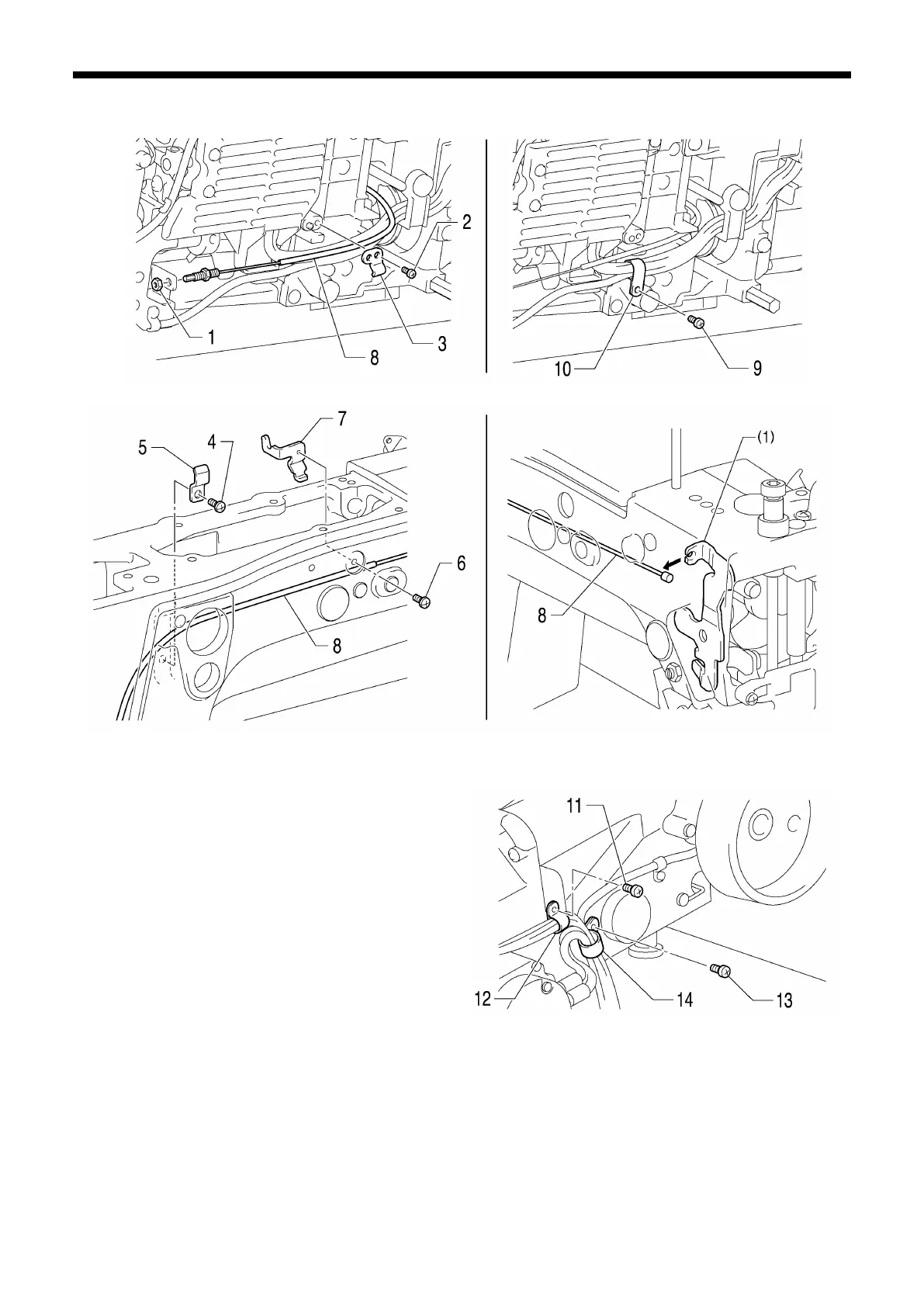

5-5. Tension release wire and thread trimmer solenoid
1. Nut
2. Screw
3. Wire holder D
4. Screw
5. Cord holder
6. Screw
7. Wire holder U
8. Tension release wire
(Remove from the tension release plate (1)
and pull out)
(1) Tension release plate
1059D
9. Screw
10. Cord holder
11. Screw
12. Cord holder
13. Screw
14. Cord holder
1061D
1060D
