Brother S-7300A - Page 122

S-7300A
6. ASSEMBLY
111
Vertical
Place as far to the
left as possible.

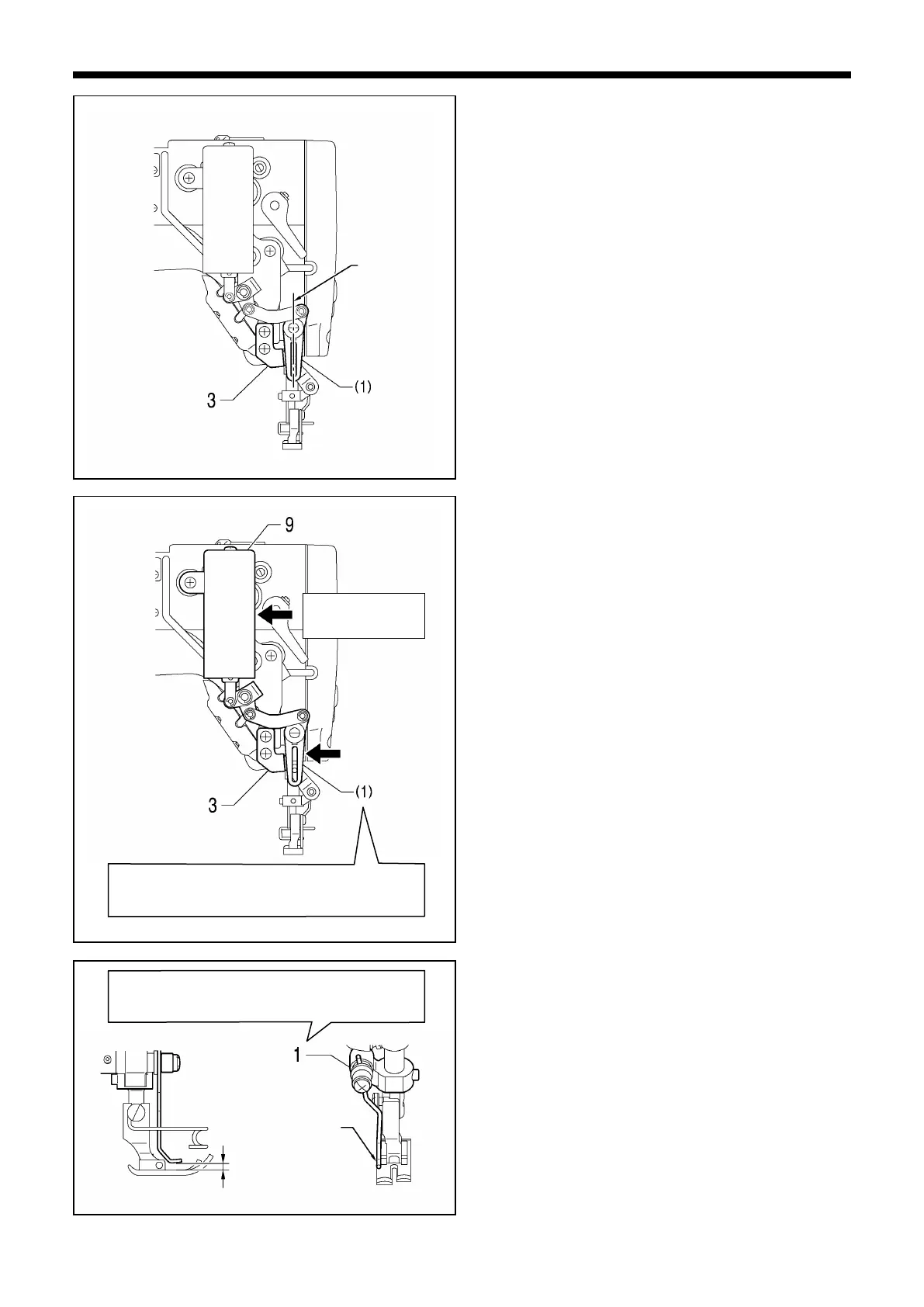

Place the thread wiper lever (1) against the
lever stopper assembly 3.
3mm
3) Adjust the position of the thread wiper device
assembly 9 so that there is no play in the link.
Aligned with
presser foot
1176D
1177D
1178D
If adjustment is not possible with just the thread
wiper, adjust the direction of the thread wiper
crank unit 1.
2) Adjust the position of the lever stopper assembly 3
so that the thread wiper lever (1) is vertical.
4) Adjust the position of the thread wiper.
