S-7300A
8. REPLACING PARTS
154

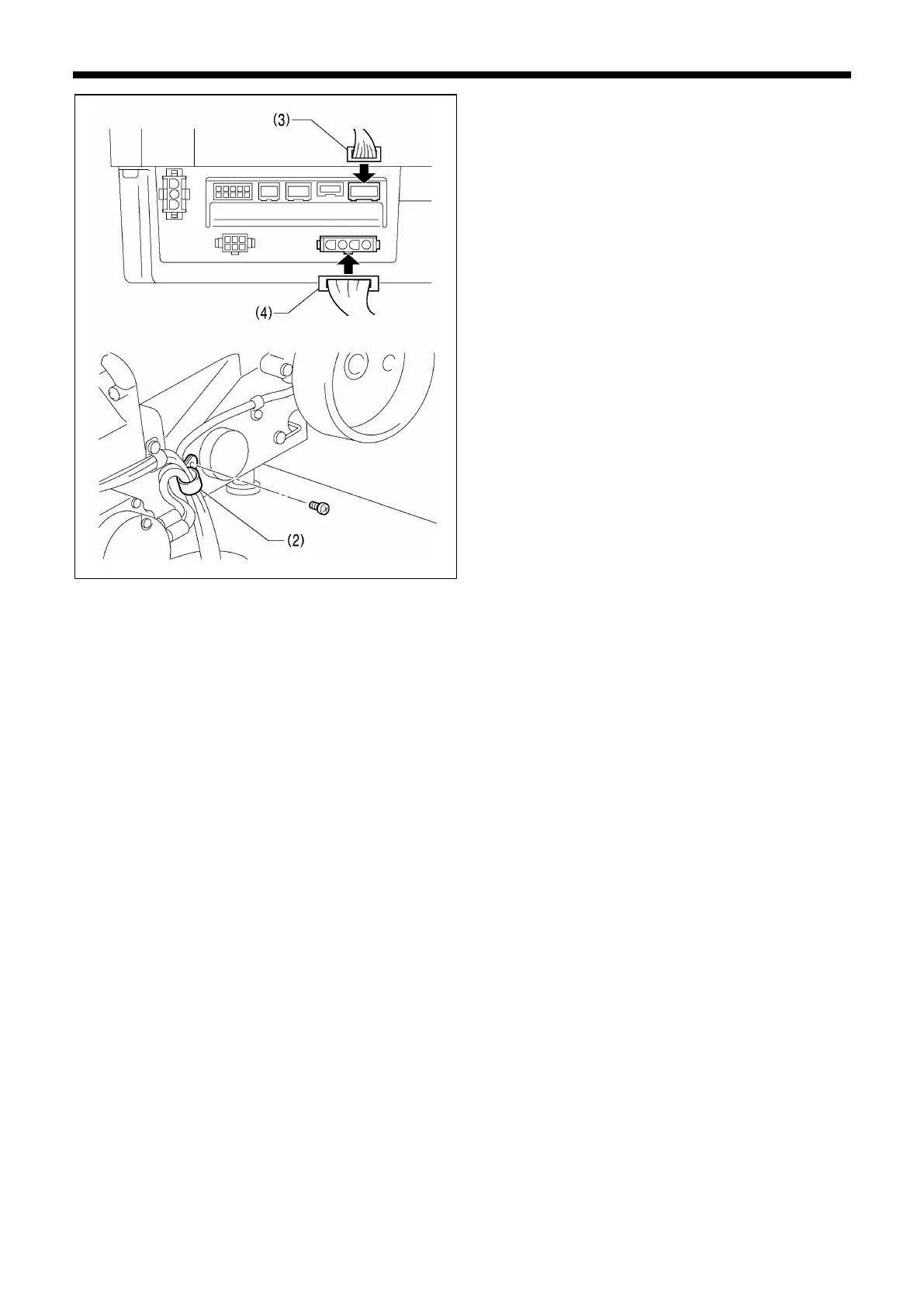

12. Connect the 16-pin sewing machine motor encoder
connector (3) and the 4-pin sewing machine motor
connector (4), and then install the harness clamp (2).
0967D
