4. MECHANICAL DESCRIPTIONS
44

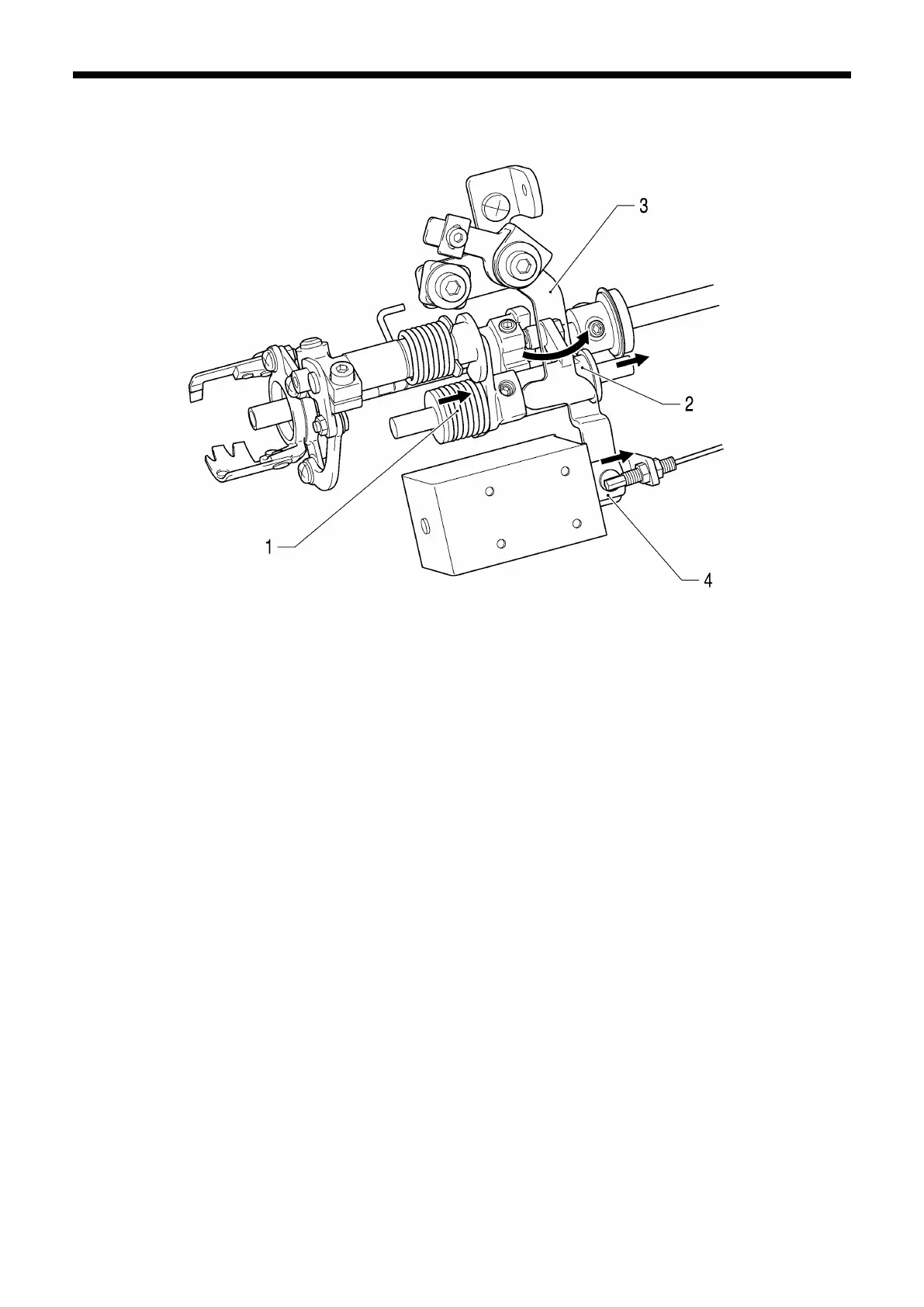

3) Thread trimming complete and operation stopped
Thread trimmer cam lever (axial direction)
1. Extension spring
2. Thread trimmer cam lever
3. Solenoid lever
4. Solenoid plunger
