S-7300A
6. ASSEMBLY
84

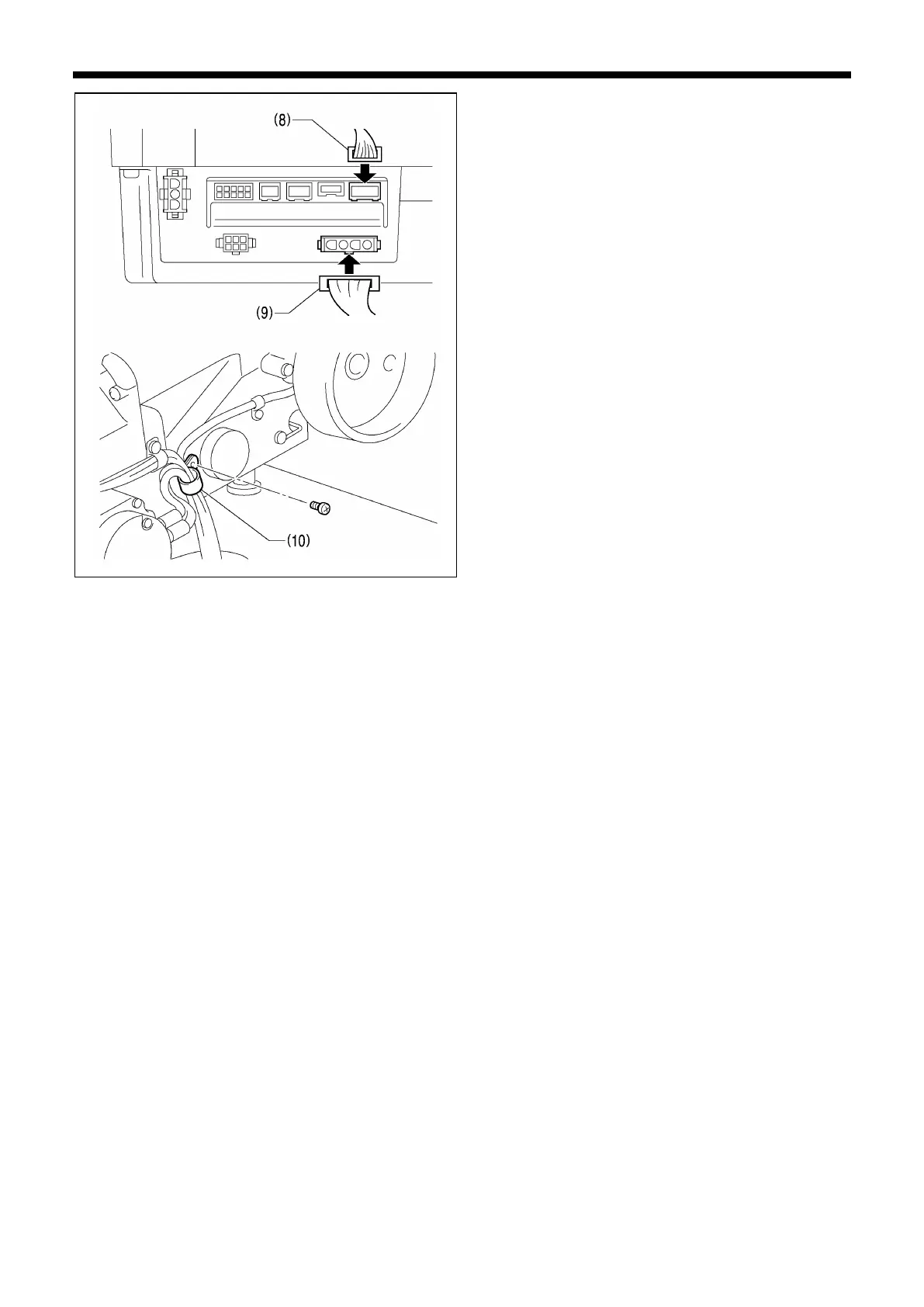

4. Connect the 16-pin sewing machine motor encoder
connector (8) and the 4-pin sewing machine motor
connector (9), and then install the harness clamp (10).
1205D
