Burkert 8693 - SP INPUT - Type of Set-Point Value Default (Internal; External)

105
Type 8692, 8693
english
Start-up, operation
process controller Type 8693
PVmax X *X
Upper scaling value for the process actual value
Settings:
The unit for the temperature and the position for the decimal point is transferred from the
inputs of the lower scaling value.
1. Input the upper scaling value for the process actual value
Press the down arrow key (←) to highlight the individual positions with a dark background.
Press the up arrow key (+) to set the value.
Adjustment range: -200 ... 800
Measurement range of the PT 100: -20 °C – 220 °C or -4 °F – 428°F
This setting specifies the reference range for the dead band of the process controller as well
as for the analogue feedback of the process actual value (option).
SP INPUT - Type of set-point value default (internal / external)
This function specifies whether the set-point value default
internal: is implemented by pressing the keys on the positioner or •
external: is implemented via the unit signal input.•
Factory setting: internal
SP-INPUT
ENTER
SELEC
internal
Internal set-point value default by
pressing the keys on the positioner
EXIT
external
External set-point value default
via unit signal input

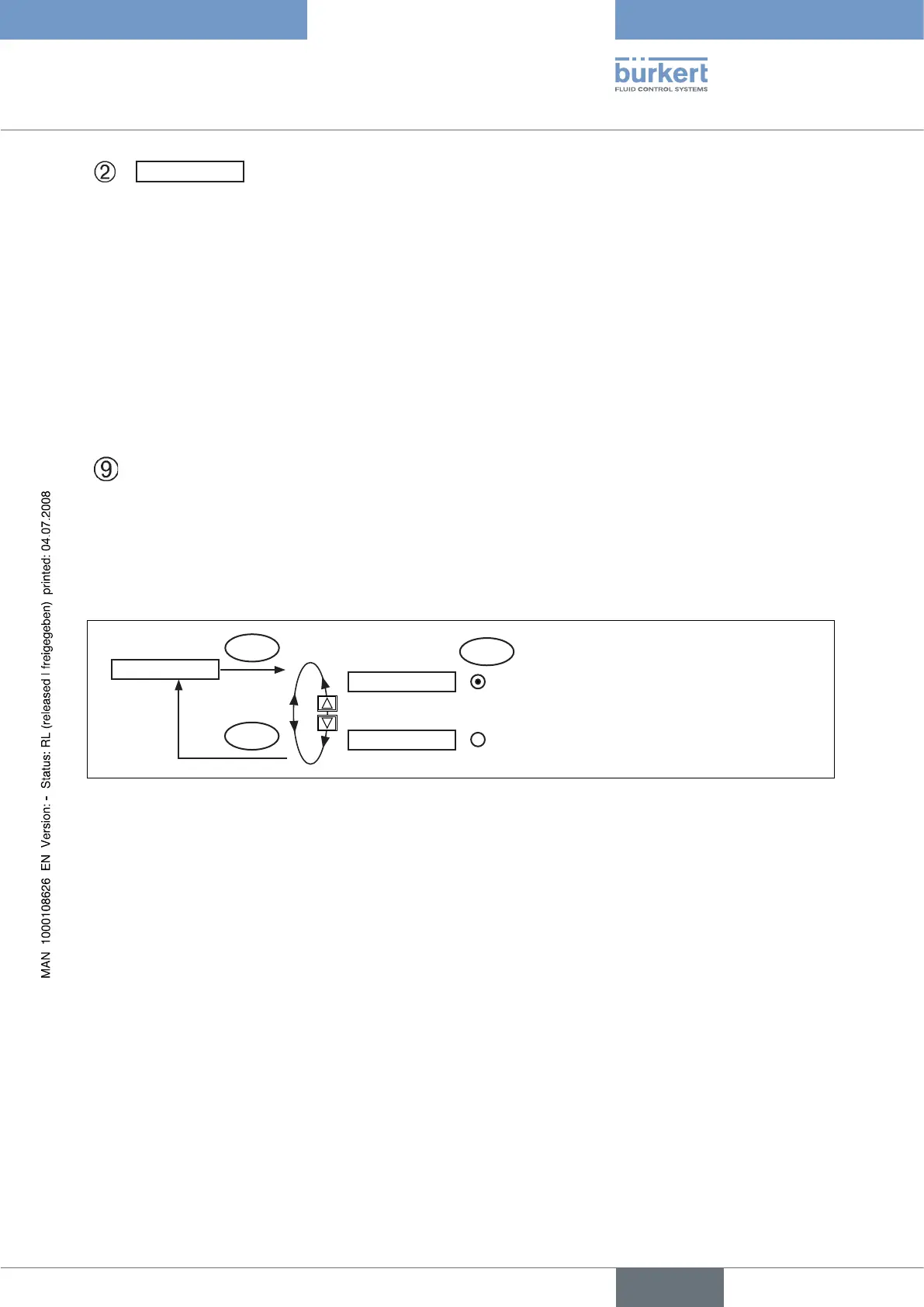

Fig. 13: Operating structure P.CONTROL - SP-INPUT
