45
Type 8682, 8693
english
Installation
5 ELECTRICAL CONNECTION -
TERMINAL MODEL FOR CABLE GLAND
DANGER!
Danger - electrical voltage in the equipment!
There is a serious risk of injury when reaching into the equipment.
Before starting work, always switch off the power supply and safeguard to prevent re-activation!•
WARNING!
Danger - improper installation!
Improper installation may result in injuries as well as damage to the device and the area around it.
Fluid and electrical installations may be carried out by authorized technicians only and with the appropriate tools!•
Danger due to unintentional activation of the equipment!
Unintentional activation of the equipment during installation may result in injuries and damage.
Take appropriate measures to prevent the equipment from being unintentionally activated.•
Using the 4 - 20 mA nominal value input
If the operating voltage of one positioner device fails in a series connection of several devices, the input of the failed
positioner device becomes highly resistive. As a result, the 4 - 20 mA standard signal fails. In this case please contact
Bürkert Service directly.
5.1 Terminal board of the positioner with screw-type terminals and
switches
Screw-type
terminals
Switch
1
10
12
13
14
11
8
9
1
2
3
4
5
6
7

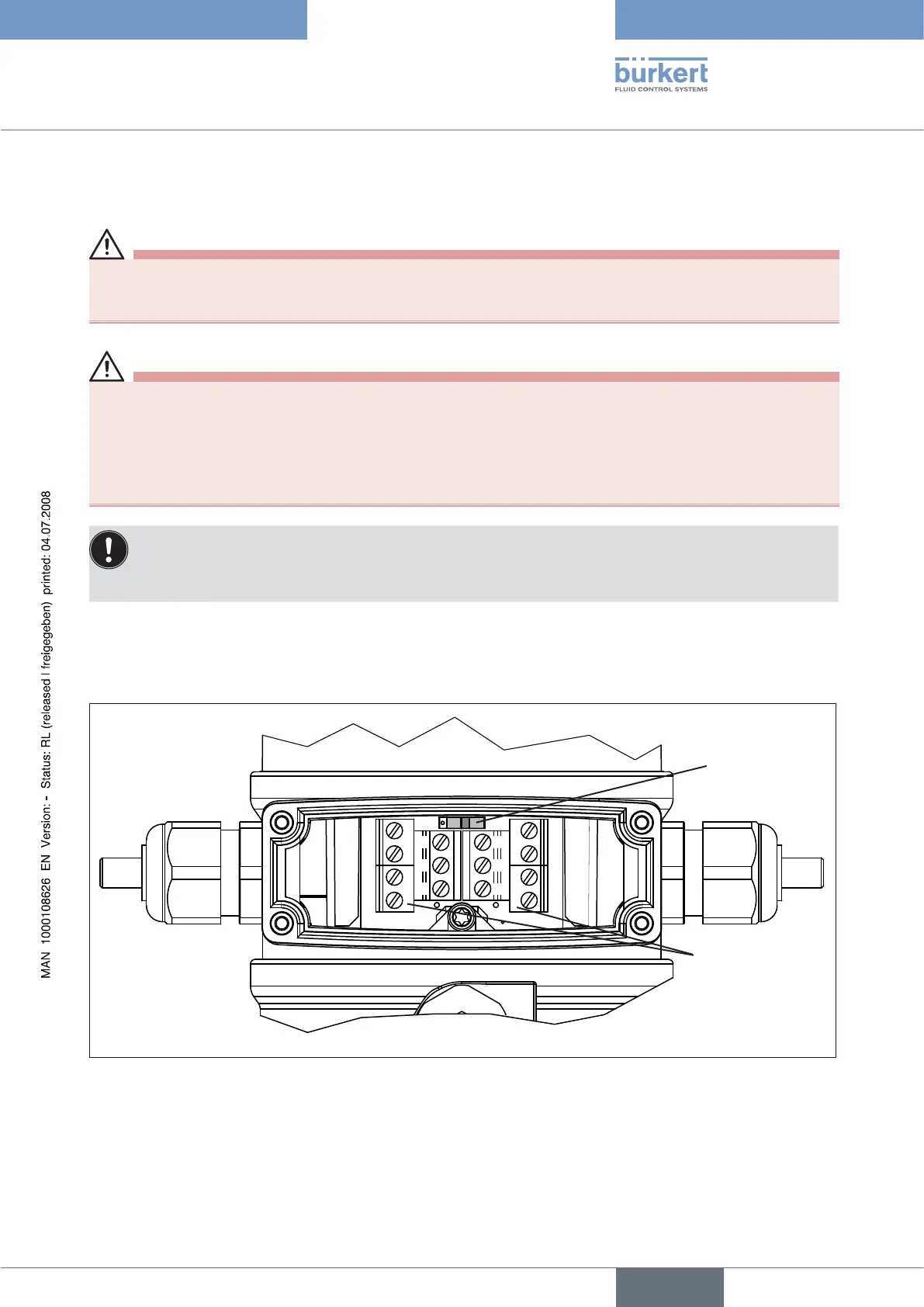

Fig. 4: Terminal board with switch
The connection terminals can be accessed by removing the cover from the cable glands. To do this, unscrew the 4 →
screws.
Connect the positioner accordingly: →
Type 8692: see chapter entitled “Terminal Assignment for Cable Gland - Position Controller Type 8692”
Type 8693: see chapter entitled “Terminal Assignment for Cable Gland - Process Controller Type 8693”
