Burkert 8693 - SETTINGS ON THE POSITIONER IN THE MAIN MENU

145
Type 8692, 8693
english
DeviceNet
6.7 Network Topology of a DeviceNet System
Line with one trunk line and several drop lines.
Trunk lines and drop lines consist of identical material (see diagram).
Trunk line
DeviceNet cable
Terminatin-
gresistor
120 Ω
¼ W
Terminatin-
gresistor
120
Ω
¼ W
Drop lines
DeviceNet cable,
max. 6 m long
T01 Tn
Subscriber 1 (node 1) Subscriber n (node n)
V + *
V –*
CAN_H
CAN_L

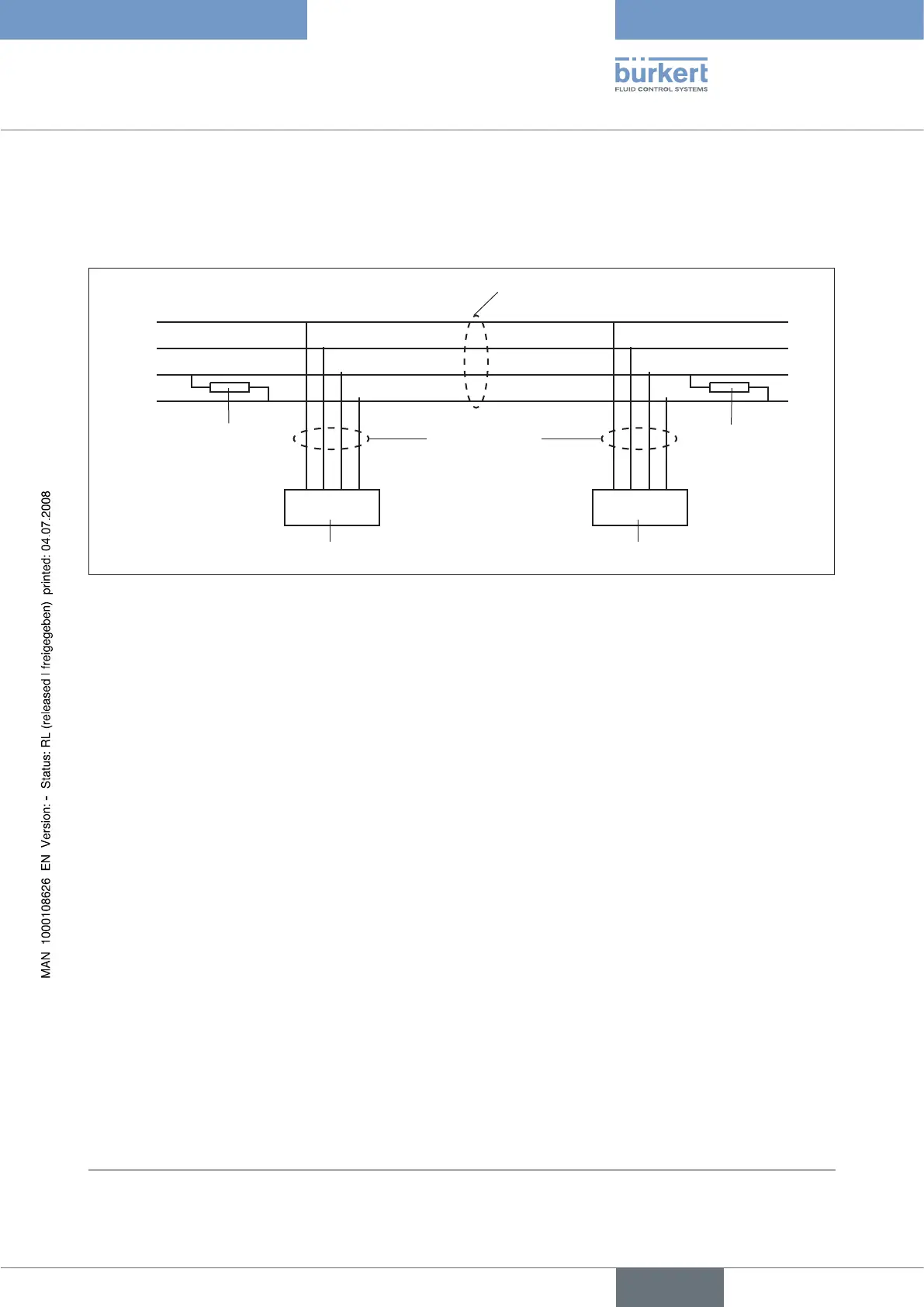

Fig. 4: Network topology, DeviceNet
* not assigned, as separate power supply
