Burkert 8693 - OUTPUT (option) Configuring the outputs

116
Type 8692, 8693
english
Start-up, operation
process controller Type 8693
4.4 SIG-ERROR
Configuration of signal level fault detection
The SIG-ERROR function is used to detect a fault on the input signal.
SIG.ERROR
ENTER
SP/CMD Input
ENTER
EXIT
PV Input
ENTER
Signal fault detection
Process set-point value / nominal position
Signal fault detection
Process actual value

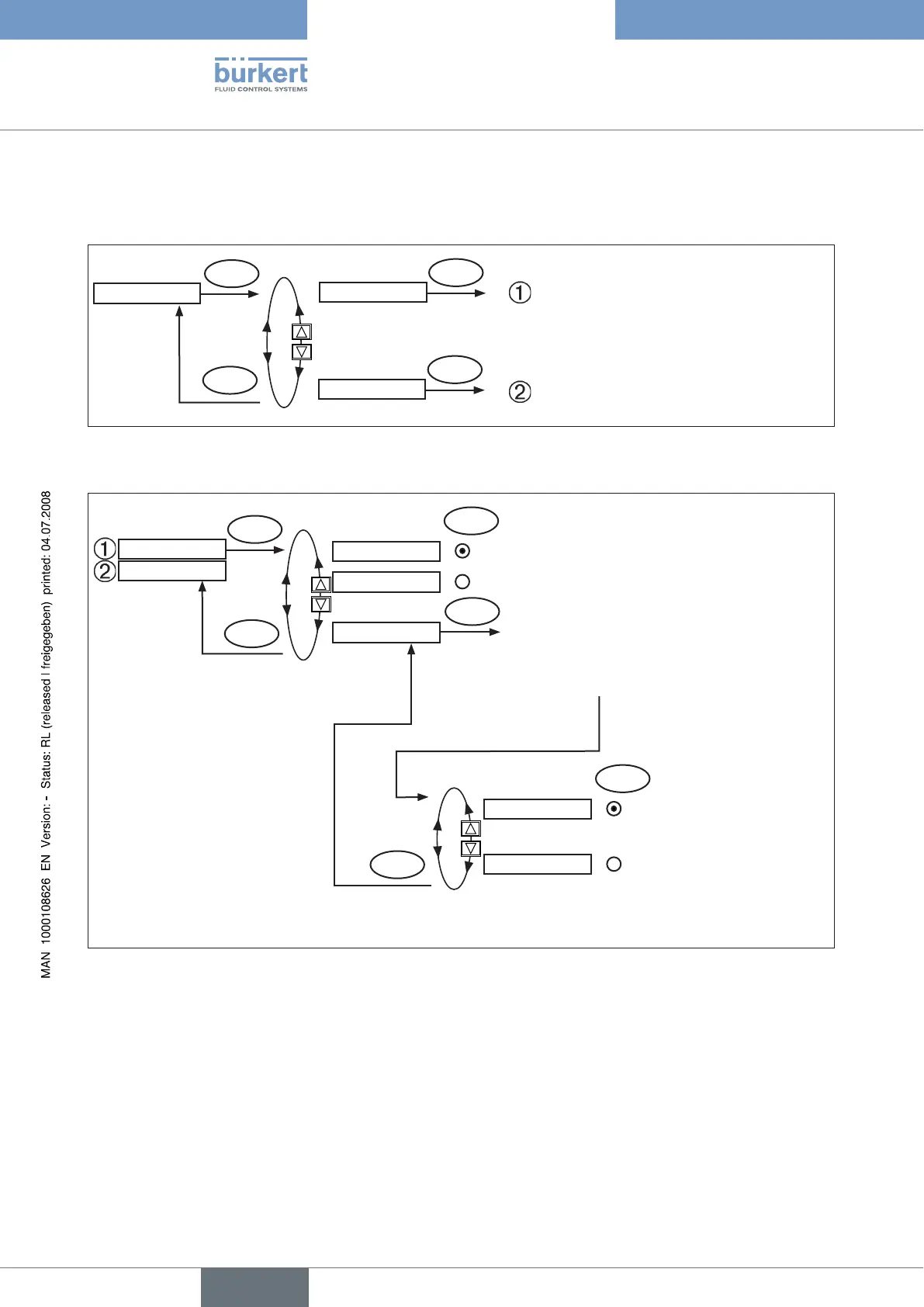

Fig. 24: Operating structure SIG-ERROR-8693
The operating structure of the menu options SP/CMD Input and PV Input is identical and is described in the diagram below:
SELEC
ERROR off
EXIT
SAFEPOS
Signal fault detection inactive
Activate approach of safety
position (only possible if
ERROR on is selected in the
Selection menu)
SP/CMD Input
ENTER
ERROR on
ENTER
Signal fault detection active
SELEC
SafePos off
Approach of the safety
position is not active.
SafePos on
Approach of the safety
position is active.
Approach of the safety
position which is saved
in SAFEPOS.
EXIT
PV Input
Fig. 25: Operating structure SIG-ERROR-8693-SP-CMD-PV
If signal fault detection is activated, the respective fault is indicated on the display.
(see chapter entitled "Maintenance and troubleshooting")
