34
Type 8692, 8693
english
Control and display elements,
operating modes
1.3 Information on the Display
The following representation describes the information on the display:
MENU INPUT CMD MANU
POS
%
XXX
Description of the
value
Unit or percent-
age of the value
Display for AUTOMATIC mode:
Bar running from left to right
Value
Bar graph display of
the value
Configuration of the keys

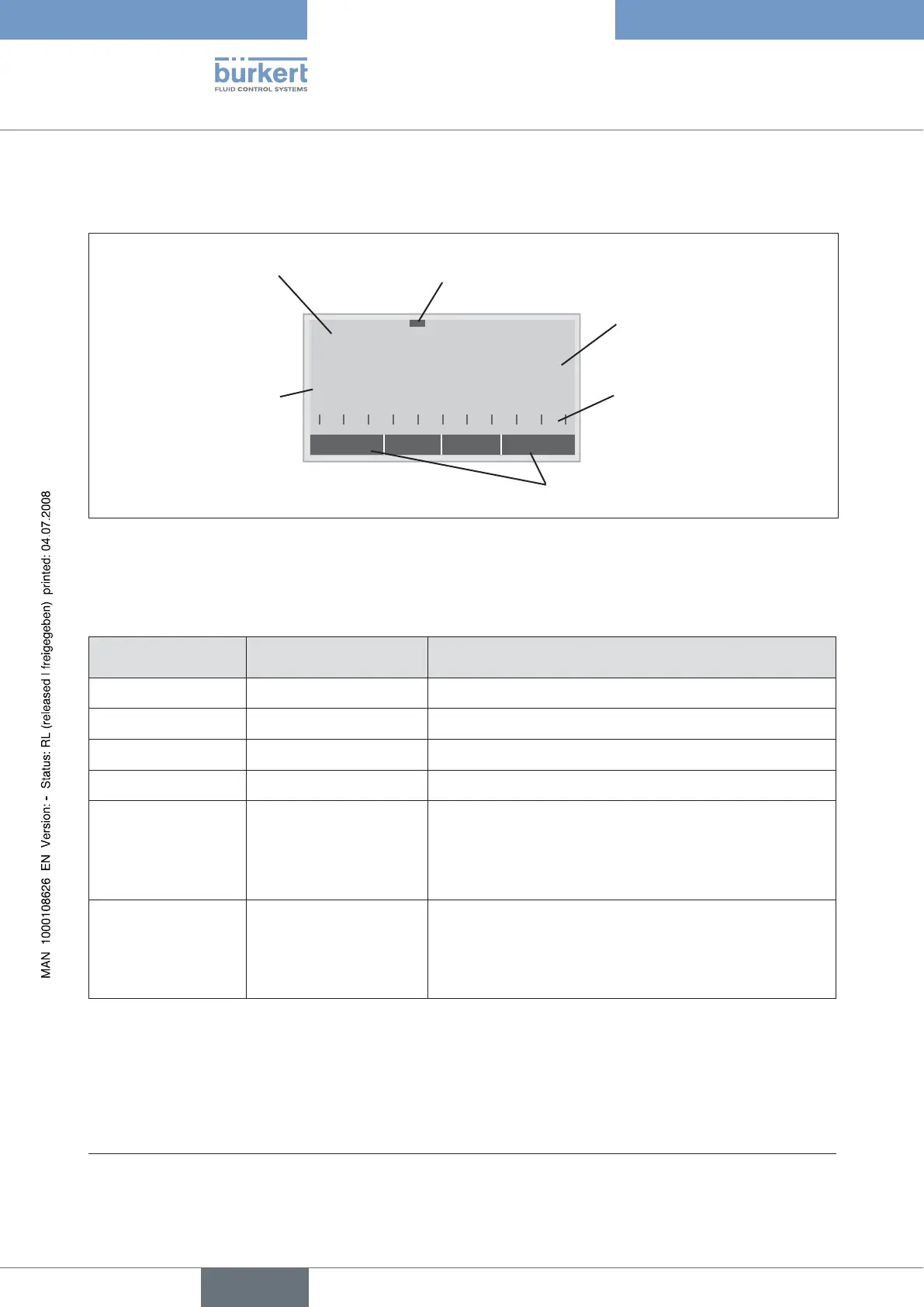

Fig. 2: Description of display
List of values which can be displayed in AUTOMATIC mode:
Representation of value Unit, value range Description
POS % Display of actual position of the valve actuator
CMD % Display of nominal position of the valve actuator
TEMP °C Internal temperature in the housing of the positioner
INPUT mA, V Input signal for nominal position
PV (PROCESS VALUE) bar, mbar, psi, %, mm, litre
l/s, l/min, l/h, m³/min, m³/h,
UG/s, UG/min, UG/h, IG/s,
IG/min, IG/h
°C, °F
Process actual value, 4 – 20 mA input
Process actual value, Frequency input
Process actual value, PT100 input
SP (SETPOINT) bar, mbar, psi, %, mm, litre
l/s, l/min, l/h, m³/min, m³/h,
UG/s, UG/min, UG/h, IG/s,
IG/min, IG/h
°C, °F *
Process set-point value
* Unit depending on process actual value.
