Burkert 8693 - Connection Diagram Type 8693; Operating Voltage (M12 Round Plug, 4-Pole); Bus Connection (M12 Round Plug, 5-Pole)

143
Type 8692, 8693
english
DeviceNet

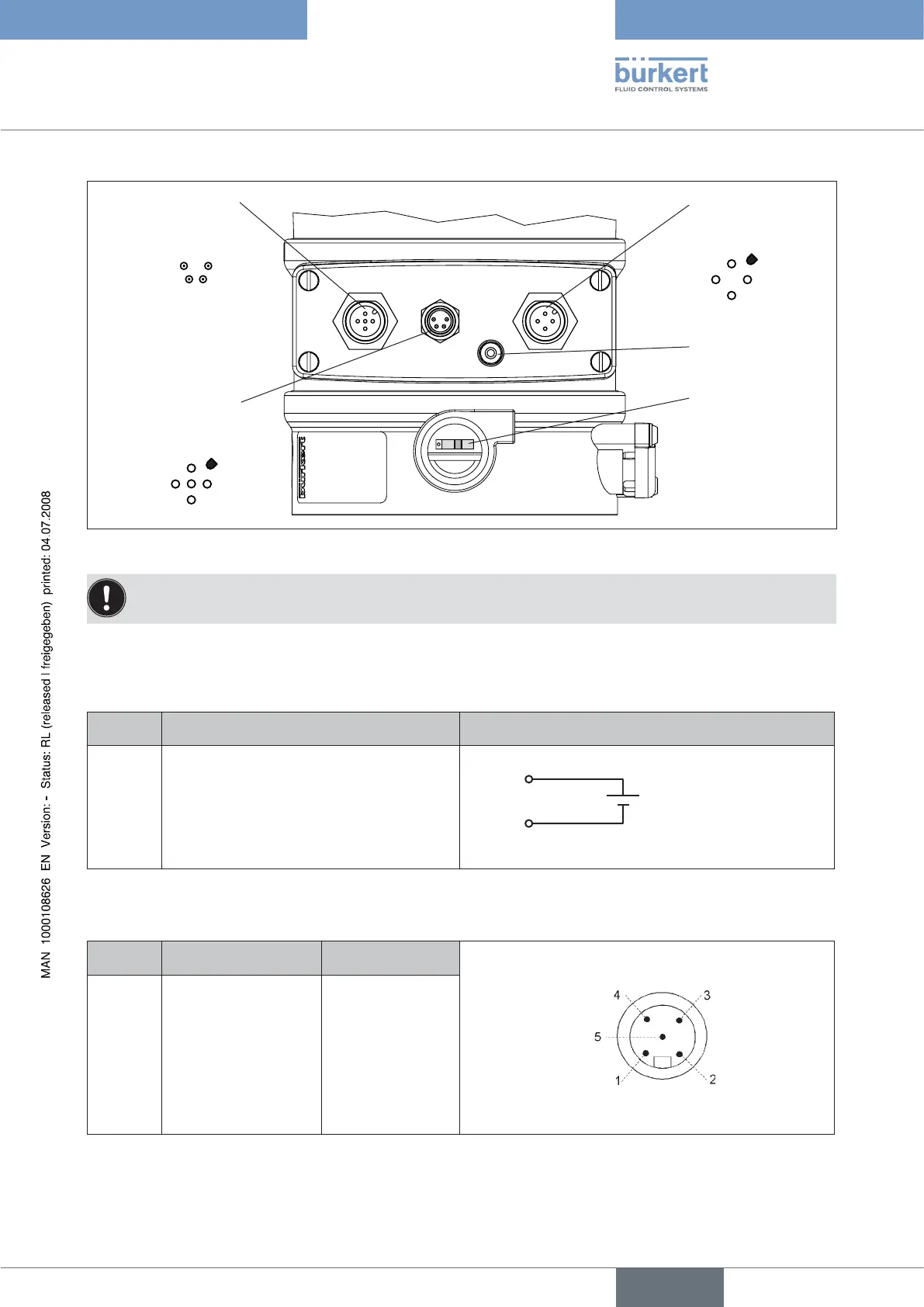

6.2 Connection Diagram Type 8693
Socket M8
4-pole
(process actual value)
Socket M12
4-pole
(operating voltage)
Buchse M12
5-polig
(DeviceNet)
1
2
3
4
1
2
3
4
1
2
3
4
5
Technical Earth
(TE)
Switch
(behind the screw)
Fig. 3: Connection of DeviceNet-8693
The power supply to the device is not supplied via the DeviceNet voltage V+ und V-, but via the operating voltage
galvanically isolated from the DeviceNet.
6.3 Operating Voltage (M12 Round Plug, 4-pole)
PIN Configuration External circuit
1 + 24 V
1
3
24 V DC ± 10 %
max. residual ripple 10 %
2 not used
3 GND
4 not used
6.4 Bus Connection (M12 Round Plug, 5-pole)
PIN Signal Colour
1 Shielding
not used
2 V + not used
3V-
not used
4 CAN H white
5 CAN L blue
