Burkert 8693 - 10 Configuration with Siemens Step7; Example 1 for a Position Controller (Type 8692): Transfer of Nominal and Actual Values

137
Type 8692, 8693
english
PROFIBUS-DP
10 CONFIGURATION WITH SIEMENS STEP7
10.1 Example 1 for a Position controller (Type 8692):
Transfer of nominal and actual values
Procedure:

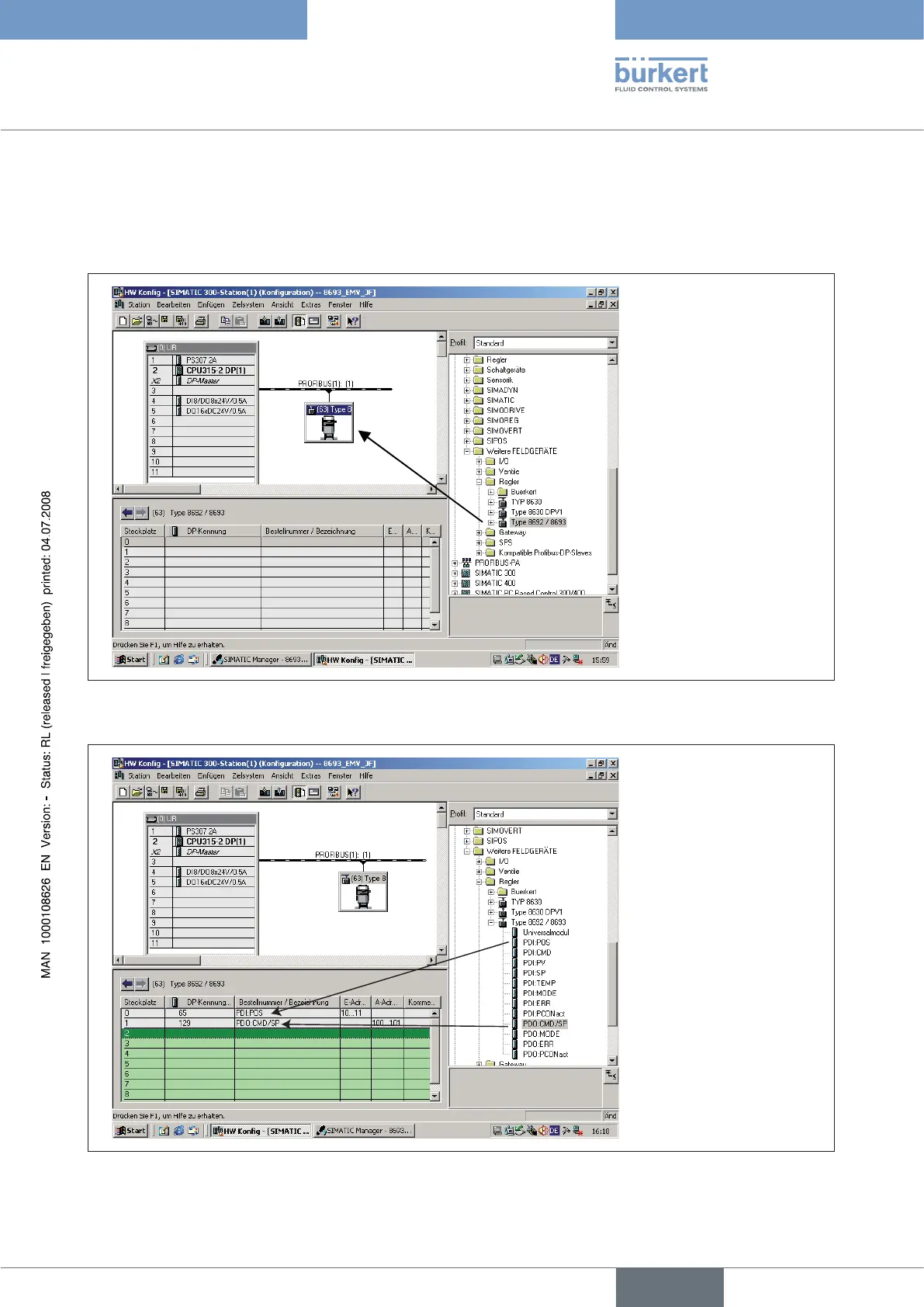

Fig. 7: Screenshot of Profibus Fig. 1
pull the slave → Type 8692 / 8693 by Drag & Drop to the bus line.
Fig. 8: Screenshot of position controller Fig. 2
pull the modules PDI:POS and PDO:CMD/SP into the slave Type 8692 / 8693 by Drag & Drop. →
