Burkert 8693 - Basic Settings for the P.CONTROL Function

96
Type 8692, 8693
english
Start-up, operation
process controller Type 8693
2.5.2 Basic settings for the P.CONTROL function
P.CONTROL
PARAMETER
SETUP
EXIT
ENTER
ENTER
EXIT
ENTER
EXIT
DBND 1 %
KP 1.00
TN 999.9
TV 0.0
X0 0.0%
INPUT
PV INPUT
PV SCALE
SP INPUT
SP SCALE*
ENTER
FILTER 0
P.CO INIT

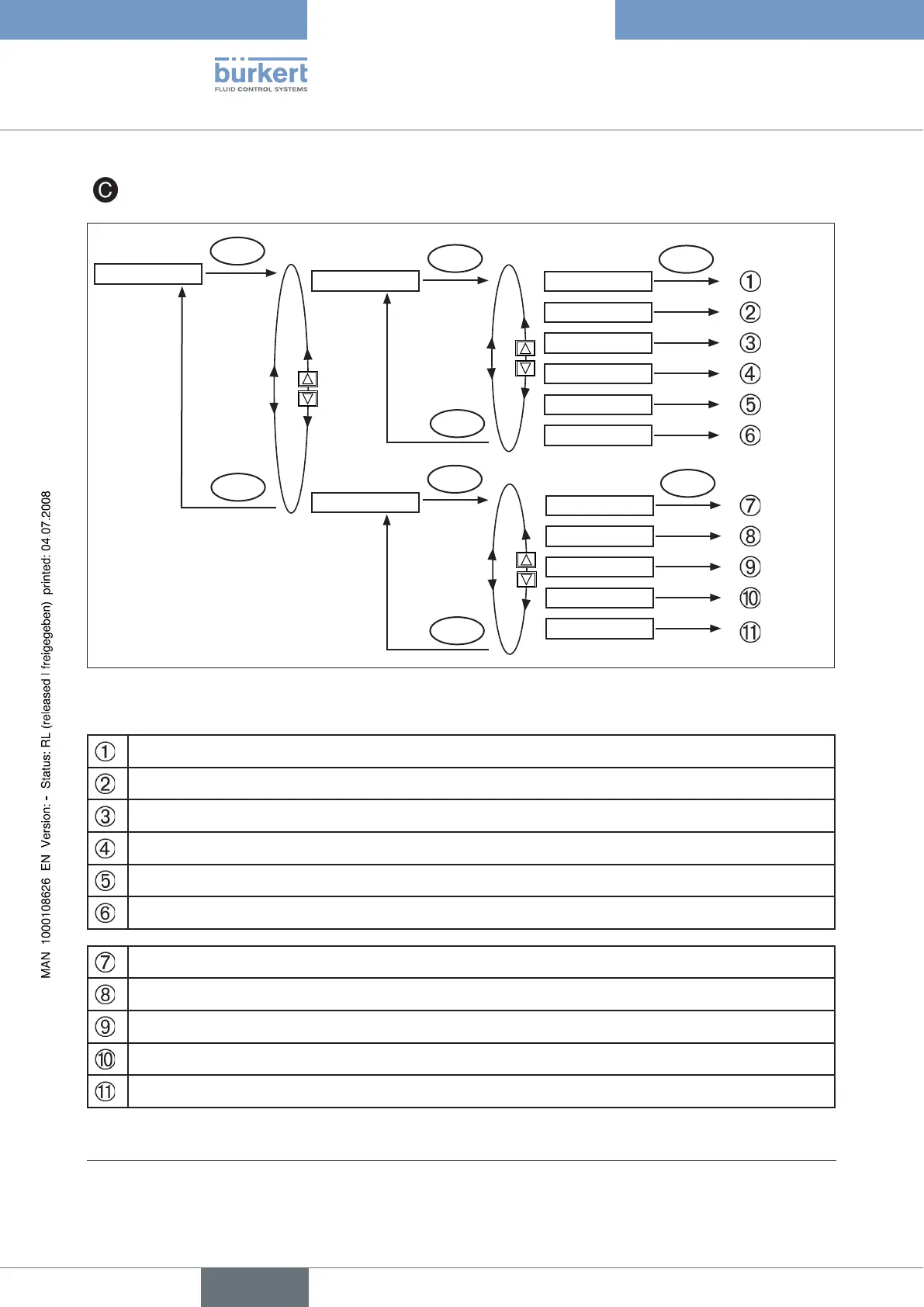

Fig. 1: Operating structure P.CONTROL
Insensitivity area (dead band) of the PID process controller
Amplification factor of the process controller
Reset time
Hold-back time
Working point
Filtering of the process actual value input
Indication of the signal type for process actual value
Scaling the process controller
Type of the set-point value default (internal or external)
Scaling the position controller (for external set-point value default only)
Enables a smooth switchover between AUTOMATIC and MANUAL mode
* The SP SCALE function is indicated only if the external set-point value default (external) menu option is activated under SP INPUT.
