142
Type 8692, 8693
english
DeviceNet
6 ELECTRICAL CONNECTIONS
DANGER!
Danger - electrical voltage in the equipment!
There is a serious risk of injury when reaching into the equipment.
Before starting work, always switch off the power supply and safeguard to prevent re-activation!•
WARNING!
Danger - improper installation!
Improper installation may result in injuries as well as damage to the device and the area around it.
Fluid and electrical installations may be carried out by authorised technicians only and with the appropriate tools!•
Danger due to unintentional activation of the equipment!
Unintentional activation of the equipment during installation may result in injuries and damage.
Take appropriate measures to prevent the equipment from being unintentionally activated.•
For operation of the device always connect the 5-pole (bus) and the 4-pole M12 round plug (power supply).
→
The connection module of Type 8692 and 8693 features a setscrew with nut which is used to connect the Technical Earth
(see diagram).
Connect the setscrew to a suitable earthing point. →
To ensure electromagnetic compatibility (EMC), ensure that the cable is as short as possible (max. 30 cm, Ø 1.5 mm
2
).
6.1 Connection Diagram Type 8692
Plug M12
4-pole
(operating voltage)
Socket M12
5-pole
(DeviceNet)
1
2
3
4
5
1
2
3
4
Technical Earth (TE)

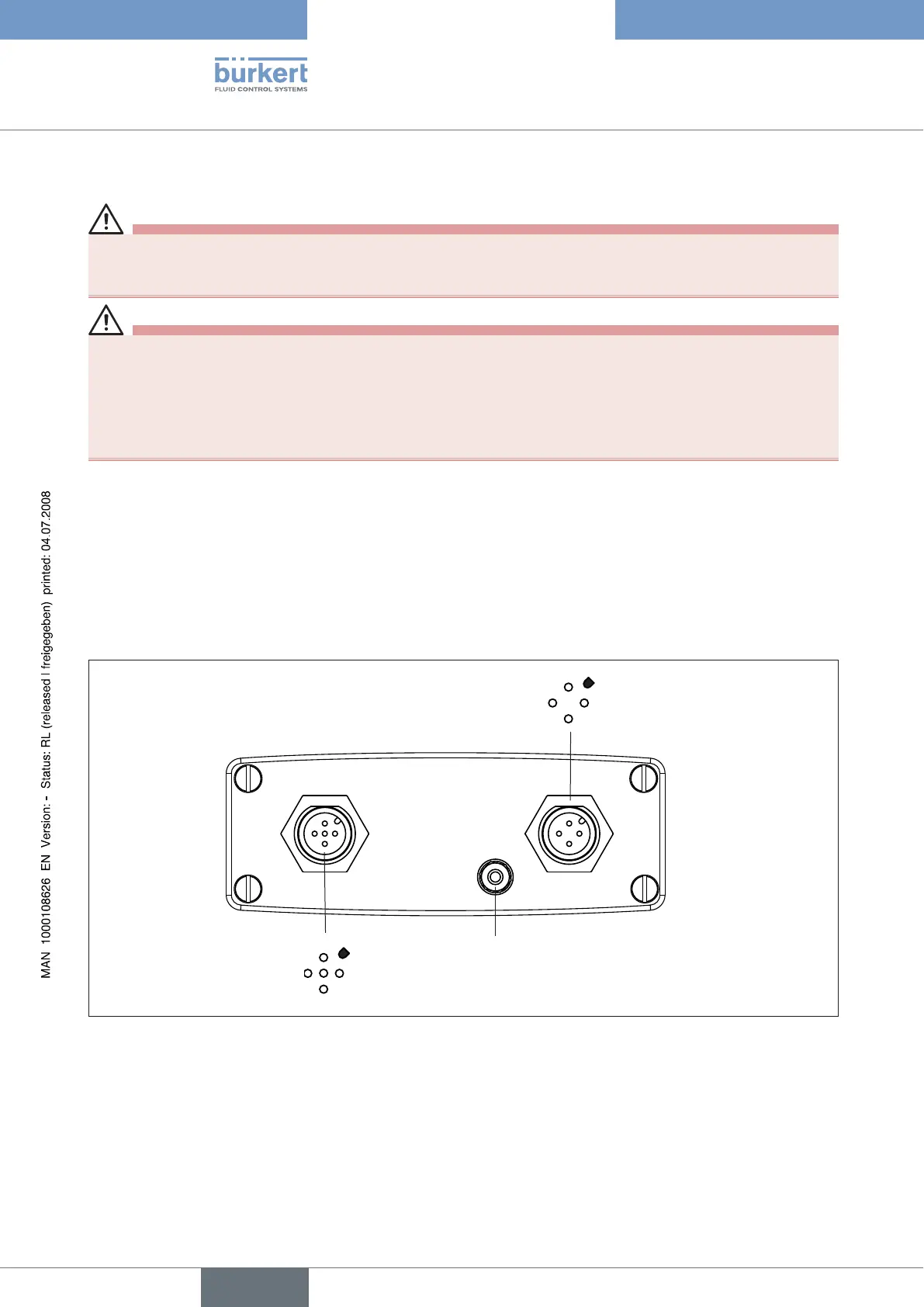

Fig. 2: Connection of DeviceNet-8692
