Type 8692, 8693
english
Control and display elements,
operating modes

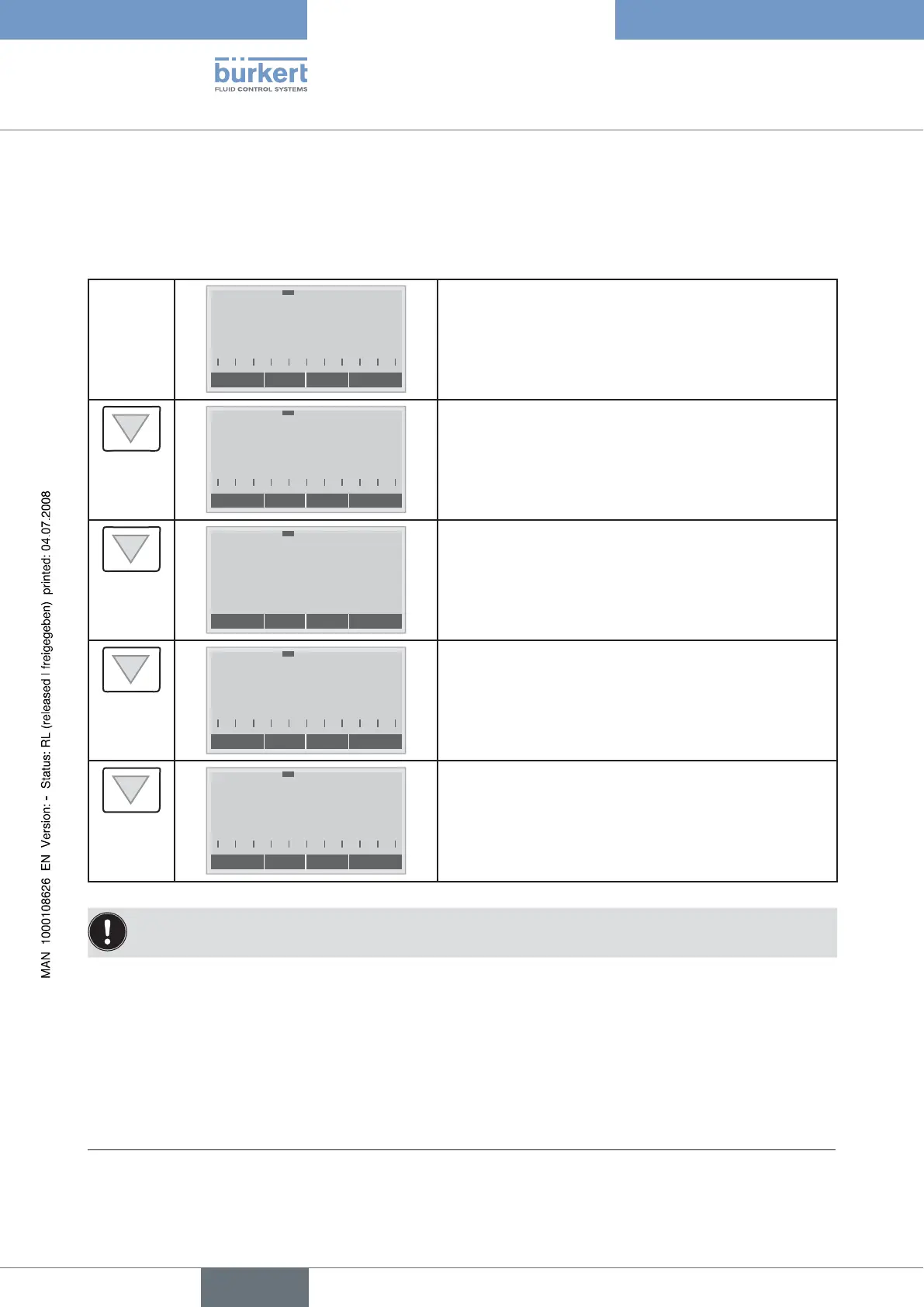

2.3 AUTOMATIC Operating State for Type 8693
(Bar runs along the upper edge of the display from left to right)
Normal controller mode is implemented and monitored in AUTOMATIC operating state.
If the P.CONTROL additional function is activated for Type 8693, it is possible to switch between the following states in AU-
TOMATIC operating state:
MENU SP CMD MANU
POS
%
XXX
Display of actual position of the valve actuator
(0 - 100%)
MENU POS TEMP MANU
CMD
%
XXX
Display of nominal position of the valve actuator or•
Display of nominal position of the valve actuator after rescaling •
by possibly activated split range function or correction charac-
teristic
(0 - 100%)
MENU CMD PV
TEMP
*C
XXX
Internal temperature in the housing of the positioner
( °C)
MENU TEMP SP MANU
PV
l/s
XXX
Process actual value
MENU PV POS INPUT*
SP
l/s
XXX
Process set-point value
If the P.CONTROL additional function is not active, the displays are represented as under Type 8692.
* INPUT is indicated here if the internal nominal value default has been selected (P.CONTROL - SP-INPUT - internal).
MANU is indicated here if the external nominal value default has been selected (P.CONTROL - SP-INPUT - external).
