Type 8692, 8693
english
Start-up, operation
position controller Type 8692
4.3.10 SAFEPOS
Input the safety position
This function specifies the actuator safety position which is started at defined signals.
The set safety position is not started unless there is a corresponding signal at the binary input (for configuration see
BINARY-IN) or if a signal error occurs (for configuration see SIG-ERROR).
In the case of the bus version (Profibus / DeviceNet) the safety position is also started with
corresponding parameter telegram•
BUS ERROR• (adjustable)
If the mechanical stroke range is limited with the X.LIMIT function, only safety positions within these limits can be
started.
This function is executed in AUTOMATIC mode only.
Factory setting: 0 %
Safepos
Safepos 0%
EXIT
ENTER
INPUT
+
-
Safepos 0
OK
*
Input the safety position
Adjustment range: 0...100 %**

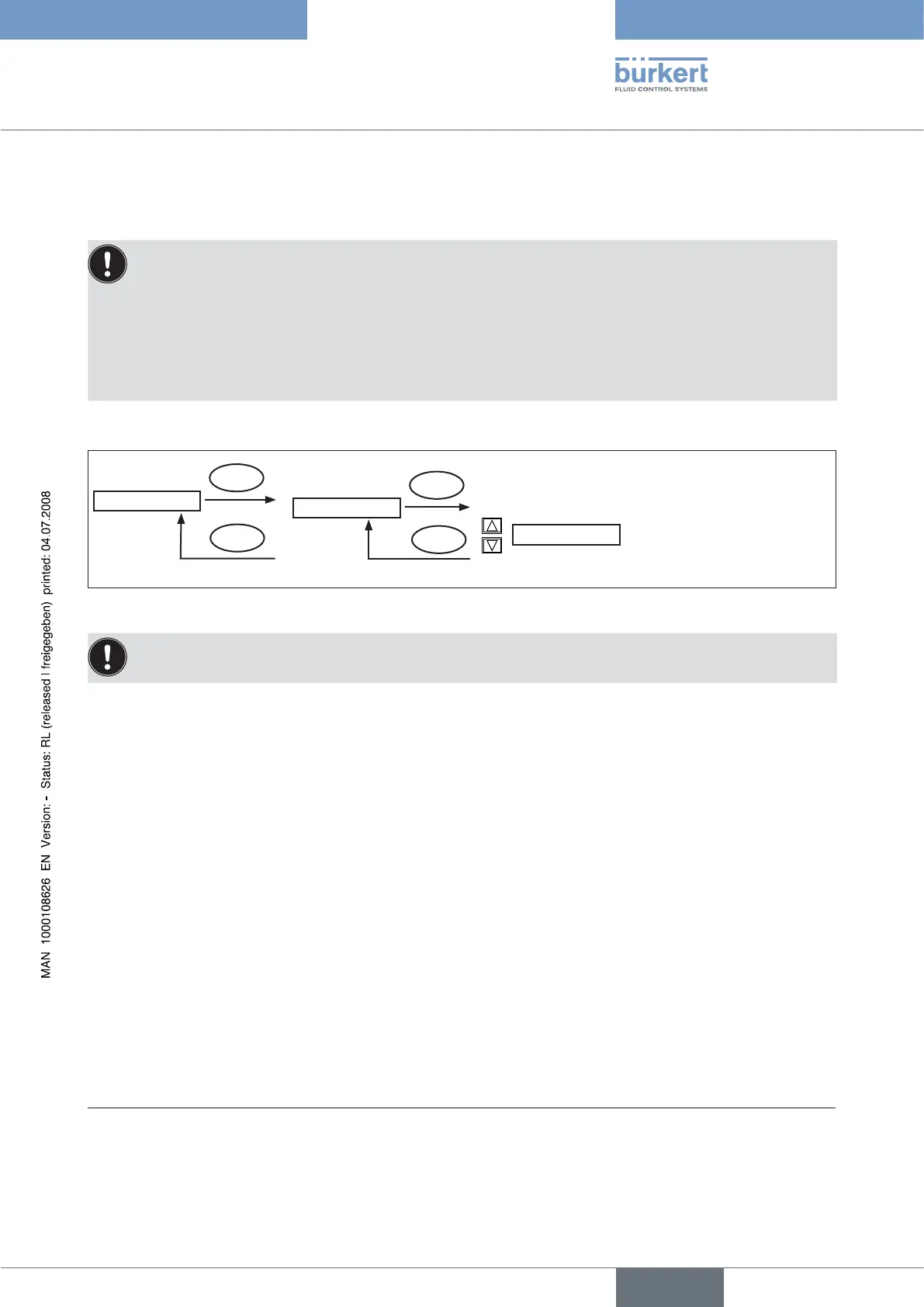

Fig. 30: Operating structure SAFEPOS
Changed values are not transferred into the memory (EEPROM) until the main menu (MAIN) is left.
* If the sub-menu is left by pressing the selection key on the left (ESC), the value remains unchanged.
** If the safety position is 0 % or 100 %, the actuator is completely deaerated or aerated as soon as the safety position SIG-ERROR or
BINARY-IN is active in the auxiliary functions.
