16
Type 8692, 8693
english
Description of System
2 STRUCTURE OF THE POSITIONER
The positioners Type 8692 and Type 8693 consist of the micro-processor controlled electronics, the position measuring system
and the control system.
The appliance is designed using three-wire technology. Operation of the positioner is controlled by four keys and a 128x64 dot
matrix graphic display.
The pneumatic control system for single or double-acting actuators consists of two or four solenoid valves.
2.1 Representation
Control module with display and keys
(View without display cover)
Supply pressure connection
3 – 7 bar
(connection: 1)
Exhaust air connection
(connection: 3)
Electrical connection module
(here with multi-pole plugs)

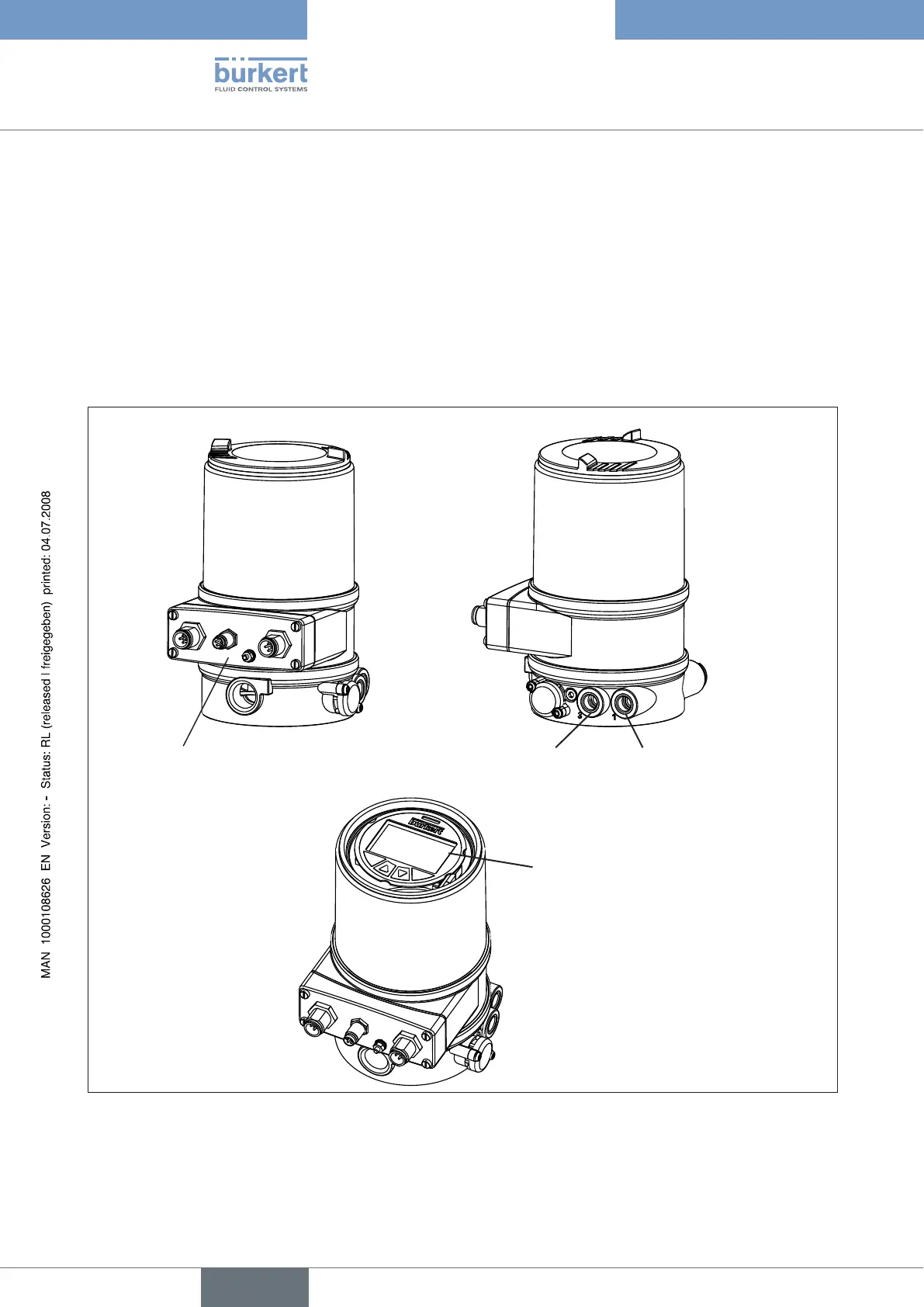

Fig. 2: Structure
